Automatic Cable Tie Systems
Art.-No. 103-00003
| T30RA-PA66HS-BK
Copied
- The AT2060 cable tie system is designed for automatic installation on bundles up to 1.25" and a minimum tensile strength of 30 lbs.

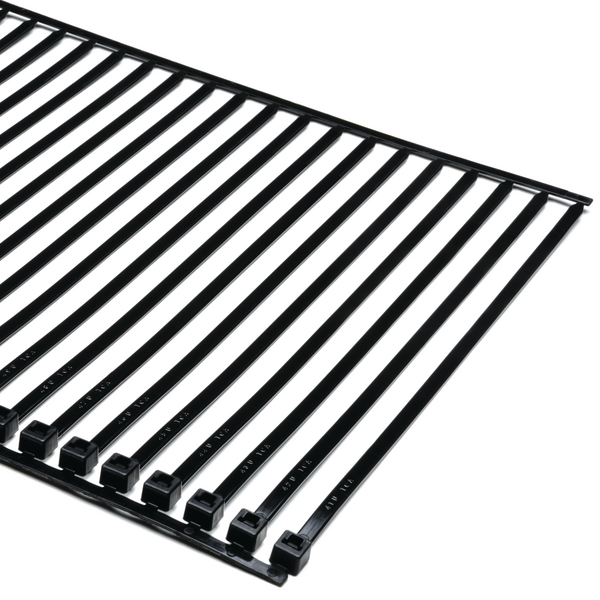

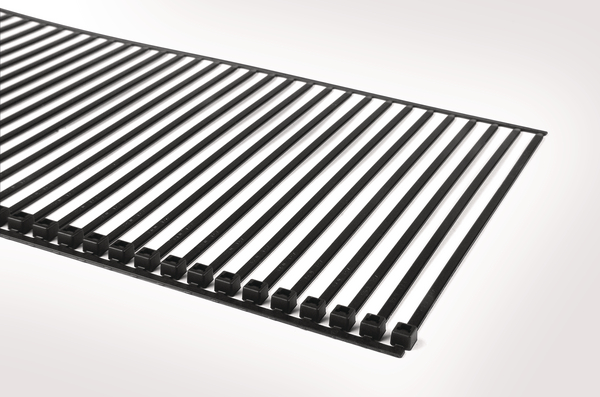

- Available in reels of 3,000 each or bandoliers of 30 each.
More products in this product group:
| Application | The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2060 is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector. |
| Brand Family | Autotool |
| Color | Black (BK) |
| Cycle Time | 1.2 seconds |
| Description | Includes AT2060 tool, power supply, power cord, tool cord, and mantenance and operation manual. |
| Min. Tensile Strength (imperial) | 30lbs |
| Min. Tensile Strength (metric) | 133.4N |
| PART DESCRIPTION | T30RA-PA66HS-BK |
| Packaging Type | pack |
| Part No. | T30RA300HS |
| Power Supply | Electrical |
| Product family | Application Tooling |
| Short Desc. | Cable Ties for AT2060, 30lb Tensile Strength, PA66HS, Black, 30/bandolier, 600/pkg |
| Type | T30RA |
| UV Resistant | No |
| Identification Plate Position | none |
| Length (imperial) | 6.0" |
| Length (metric) | 152.4mm |
| Max. Bundle Diameter (imperial) | 1.25" |
| Max. Bundle Diameter (metric) | 31.75mm |
| Min. Bundle Diameter (imperial) | 0.06" |
| Min. Bundle Diameter (metric) | 1.5mm |
| Reel Diameter | 450.0mm |
| Reel Diameter (imperial) | 17.7" |
| Reel Width | 182.8mm |
| Reel Width (imperial) | 7.197" |
| Releasable Closure | No |
| Tension Setting | Adjustable |
| Thickness (imperial) | 0.05" |
| Thickness (metric) | 1.2mm |
| Voltage range | 27 Volt |
| Width (imperial) | 0.14" |
| Width (metric) | 3.6mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V-2 |
| Material | PA66HS |
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Operating Temperature | -40°F to +275°F (-40°C to +135°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | No |
| UL File Number [Logo] | E64139 [C_RU_US_62275_Type11] |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL Type Number | 11 |
