Automatic Cable Tie Systems
Art.-No. 103-00002 | T30RA-PA66-NA

Copied
Bandoliers of 50 or reels of 5000 cable ties are available, enabling maximum user efficiency in hand-held, bench-mount, or automated processes.
HellermannTyton's automatic cable tie tool systems support principles of flexible manufacturing requirements and environments.

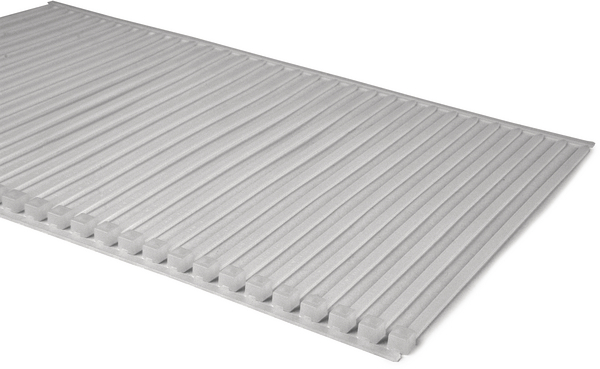

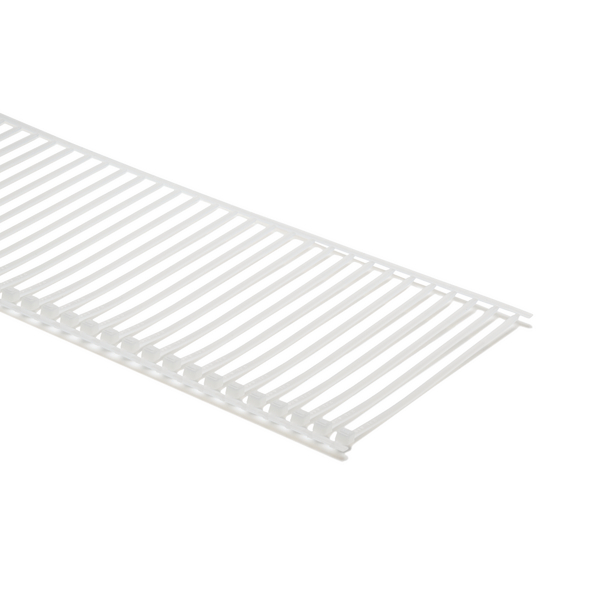

Bandoleer T18RA

    • The AT2060 cable tie system is designed for automatic installation on bundles up to 1.25" and a minimum tensile strength of 30 lbs.
    • Available in reels of 3,000 each or bandoliers of 30 each.
    Package size
    Add to watchlist
    Downloads
    Application The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2060 is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.
    Brand Family Autotool
    Color Natural (NA)
    Cycle Time 1.2 seconds
    Description Cable ties for use with HellermannTyton's AT2060 automatic cable tie tool
    Min. Tensile Strength (imperial) 30lbs
    Min. Tensile Strength (metric) 135N
    PART DESCRIPTION T30RA-PA66-NA
    Packaging Type pack
    Part No. T30RA30
    Power Supply Electrical
    Product family Application Tooling
    Short Desc. Cable Ties for AT2060, 30lb Tensile Strength, PA66, Natural, 30/bandolier, 600/pkg
    Type T30RA
    UV Resistant No
    Identification Plate Position none
    Length (imperial) 6.0"
    Length (metric) 152.4mm
    Max. Bundle Diameter (imperial) 1.25"
    Max. Bundle Diameter (metric) 31.75mm
    Min. Bundle Diameter (imperial) 0.06"
    Min. Bundle Diameter (metric) 1.5mm
    Reel Diameter 450.0mm
    Reel Diameter (imperial) 17.7"
    Reel Width 182.8mm
    Reel Width (imperial) 7.197"
    Releasable Closure No
    Tension Setting Adjustable
    Voltage range 27 Volt
    Width (imperial) 0.14"
    Width (metric) 3.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V-2
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    Prop65 Warning No
    REACH Conformity Yes
    ROHS compliant No
    UL File Number [Logo] E64139 [C_RU_US_62275_Type11]
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type Number 11
    Customs Number (Schedule B) 3926909988
    Harmonized Tariff Schedule Code 3926.90.9989
    Packaging 1 - Weight (kg) 1.8kg
    Pkg. Qty. 600
    Pkg. Qty. 600Pieces
    Reel Weight 3.175kg
    Reel Weight 7lbs
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.

    Cable tie guns >
