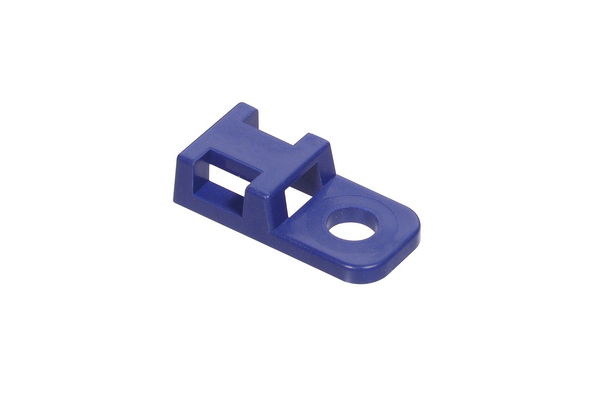

Cable tie mount for screw fixation, Wmax=5.1mm, ⌀4.3 mm, M4 Screw, blue, 100pcs.
Art.-No. 151-04514 | MCXRCTAM1-PPMDXRAYDHS-BU |

Copied
Cable Tie Mounts CTAM.
Detectable fixing solution containing of MCCTAM1 mount and MCTS cable tie.
CTAM-Series in application
CTAM-Series (plan view)
CTAM-Series (side view)

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist
    Downloads
    Application MCXR screw fixing mounts are ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Fixation Method Screw Mounting and Rivet
    Material Polypropylene, metal detectable, X-ray detectable, heat stabilised (PPMDXRAYDHS)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MCXRCTAM1-PPMDXRAYDHS-BU
    Package Content 100pcs.
    Product Family CTAM-Series for applications where space is limited
    Product Group Screw fixing mounts
    Type MCXRCTAM1
    Height (H) 5.1mm
    Length (L) 20.5mm
    Strap Width max. (G) 5.1mm
    Width (W) 10.2mm
    for Hole ⌀ (FH) 4.3 mm
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387129489
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
