01/07/2026

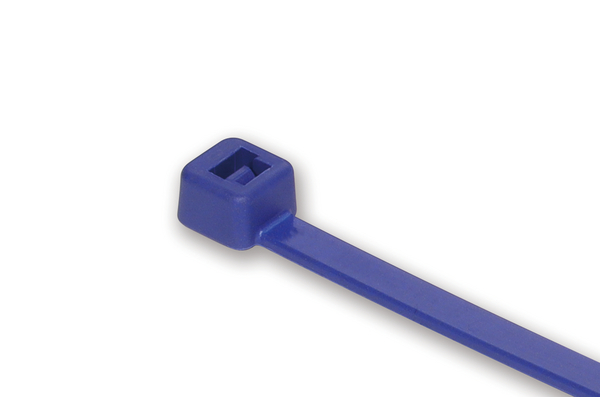

Cable tie inside serrated detectable, 300x4.8mm, ⌀14-80mm, blue, 100pcs.


Art.-No. 111-02720

| MCTXR300-PPMDXRAYDHS-BU

 |

Copied
MCT(S)
MCTPP ties have a high chemical and temperature resistance.
A safe and contamination free production process.
Our detectable MCT(S) cable ties are used in the food and pharmaceutical industry.
MCT Series cable ties are metal detectable, to minimize the risk of foreign object contamination.

    • Total metal dispersion throughout the tie.
    • Can support quality assurance in the production of food stuffs, for example HACCP.
    • Blue colour for easy visual detection.
    • Greatly reduces risk of contamination.
    • Perfect use for both X-ray and metal detectors (detection level depending on specific application and equipment).
    • MCTXR ties have very good corrosion resistance.
    Add to watchlist
    Downloads
    Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process.
    Colour Blue (BU)
    Identification Plate Position none
    Key product features detectable
    Material Polypropylene, metal detectable, X-ray detectable, heat stabilised (PPMDXRAYDHS)
    Min.Tensile Strength 150N
    PART DESCRIPTION MCTXR300-PPMDXRAYDHS-BU
    Package Content 100pcs.
    Product Family MCTXR-Series
    Product Group Cable Ties for food industry, detectable
    Tie Closure plastic pawl
    Type MCTXR300
    Variant Inside Serrated
    Bundle ⌀ 14-80mm
    Bundle ⌀ max. 80mm
    Bundle ⌀ min. 14mm
    Cable Tie Head Height (metric) 5.0mm
    Length (L) 300mm
    Thickness (T) 1.5mm
    Width (W) 4.8mm
    Operating Temperature -40 °C to +120 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387129526
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
