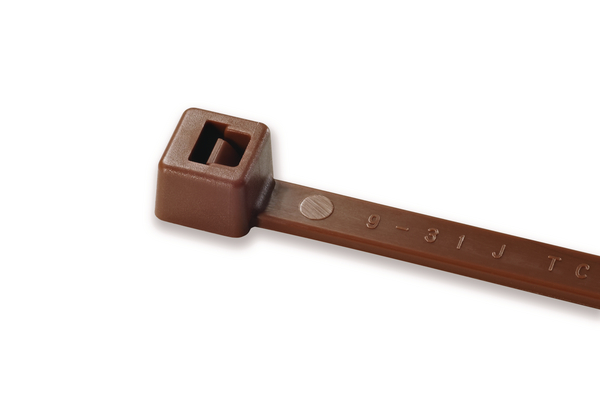

Cable tie inside serrated, 100.0x2.5mm, ⌀1.0-22.0mm, brown, 1000pcs.
Art.-No. 111-00645 | T18R-PA66-BN

Copied
T-Series

    • Engineered and manufactured for maximum performance and quality.
    • Made from 100% high-quality plastic to ensure efficient recycling.
    • Inside serration for a strong grip onto bundles.
    • Easy application either manually or with a tensioning tool.
    • Bent tail allows for simpler insertion.
    Package size
    Add to watchlist
    Downloads e-Learning
    Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
    Brand Family T-Series
    Color Brown (BN)
    Description T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
    Min. Tensile Strength (imperial) 18lbs
    Min. Tensile Strength (metric) 80N
    PART DESCRIPTION T18R-PA66-BN
    Packaging Type bag
    Part No. 111-00645
    Product family Cable Ties
    Product family Cable Ties
    Type T18R
    UV Resistant No
    Cable Tie Closure plastic pawl
    Cable Tie Head Length (imperial) 0.19"
    Cable Tie Head Width (imperial) 0.18"
    Height (imperial) 0.15"
    Height (metric) 3.7mm
    Identification Plate Position none
    Length (imperial) 3.94"
    Length (metric) 100.0mm
    Max. Bundle Diameter (imperial) 0.87"
    Max. Bundle Diameter (metric) 22.0mm
    Min. Bundle Diameter (imperial) 0.04"
    Min. Bundle Diameter (metric) 1.0mm
    Releasable Closure No
    Thickness (metric) 1.1mm
    Width (imperial) 0.10"
    Width (metric) 2.5mm
    Flammability UL 94 V-2
    Halogen Free Yes
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    ROHS compliant Yes
    Pkg. Qty. 1000Pieces
    Pkg. Qty. 1000
