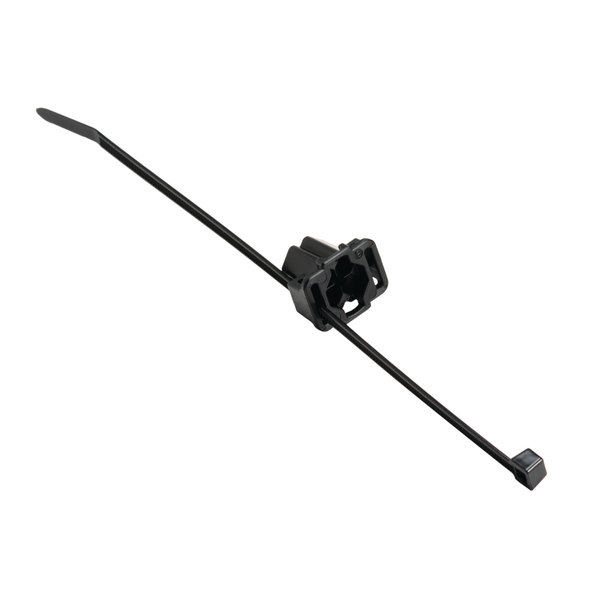

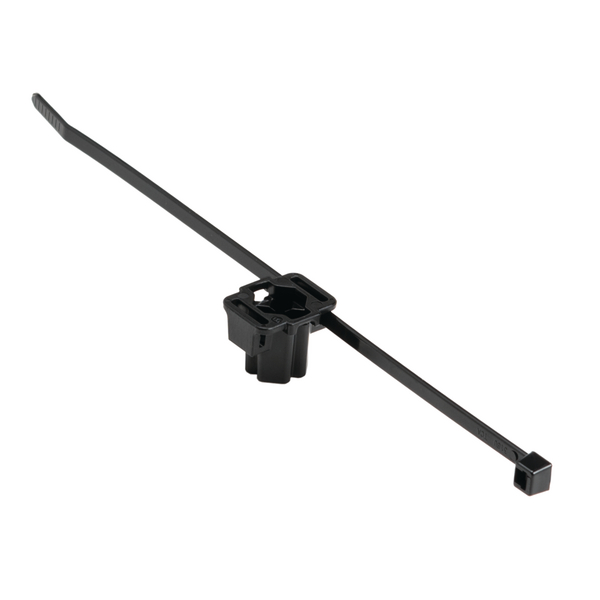

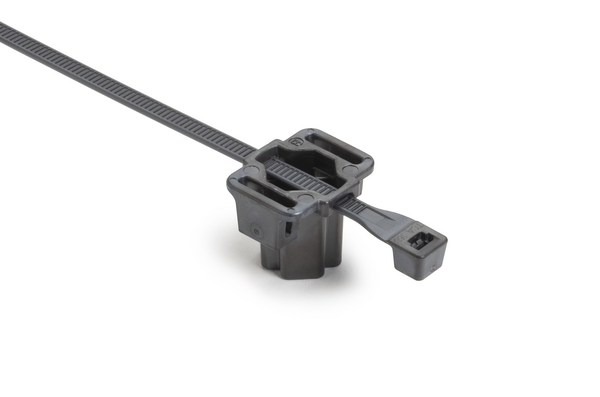

Fixing tie for stud, ⌀4.0-50.0mm, black, 3000pcs.
Art.-No. 156-01547 | T50R0SBS5-6U-SET-PA66HS/PA66HIRHSUV-BK

Versatile design allows cable routing above, perpendicular or parallel to stud.

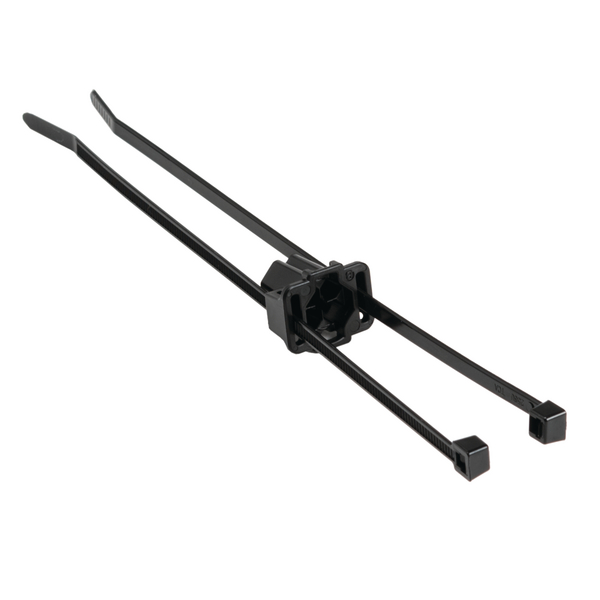

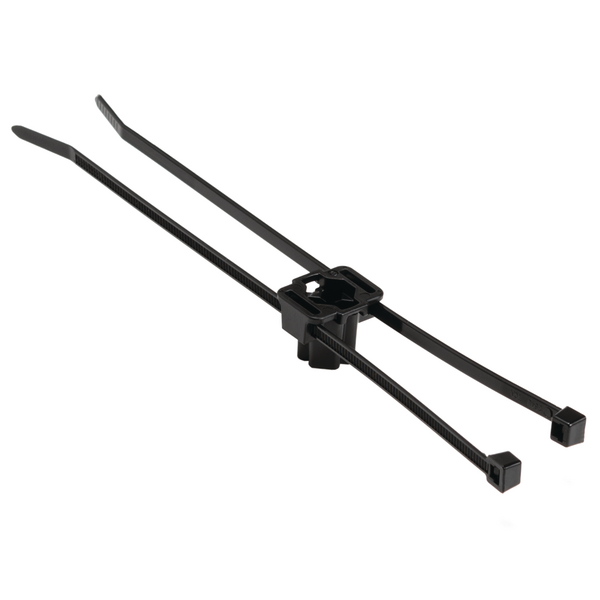

Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

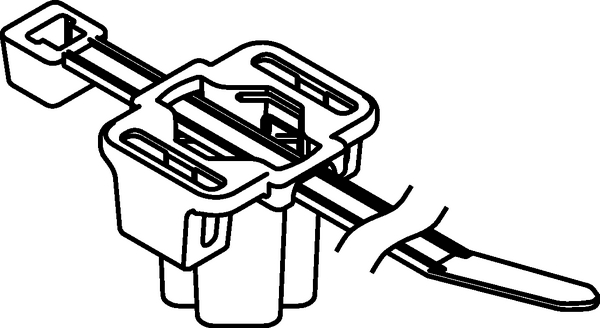

Application	Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Color	Black (BK)
Description	Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	222N
PART DESCRIPTION	T50R0SBS5-6U-SET-PA66HS/PA66HIRHSUV-BK
Packaging Type	pack
Part No.	156-01547
Product family	2-Piece Tie Assemblies
Product family	Products to use on studs
Short Desc.	2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength, PA66HS/PA66HIRHS, BK, 3000/pkg
Type	T50R0SBS5-6U-SET
UV Resistant	Yes

Cable Tie Closure	plastic pawl
Fixation Method	Stud Mount
Height (imperial)	0.74"
Height (metric)	18.75mm
Identification Plate Position	none
Length (imperial)	8.0"
Length (metric)	202.0mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Mounting Hole Diameter (imperial)	0.24"
Min. Bundle Diameter (imperial)	0.16"
Min. Bundle Diameter (metric)	4.0mm
Min. Mounting Hole Diameter (imperial)	0.2"
Mounting Hole Diameter (imperial)	0.20 x 0.03 ", 0.24 x 0.04 ", 0.20 "
Mounting Hole Diameter (metric)	M5 x 0.8, M6 x 1, T5
Mounting Hole Shape	Round
Releasable Closure	No
Stud Diameter (imperial)	0.20 ", 0.24"
Stud Diameter (metric)	5.0 mm, 6.0 mm
Width (imperial)	0.181"
Width (metric)	4.6mm
Width 2 (imperial)	0.79"
Width 2 (metric)	20.05mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 heat stabilized (PA66HS)
Material	PA66HS, PA66HIRHSUV
Material	Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Foot Part	PA66HIRHS
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	3000
Pkg. Qty.	3000Pieces
