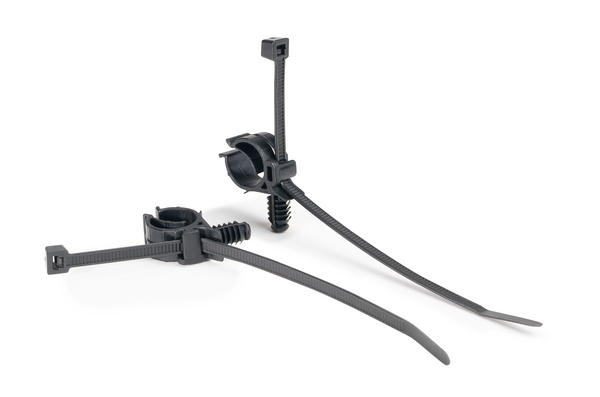

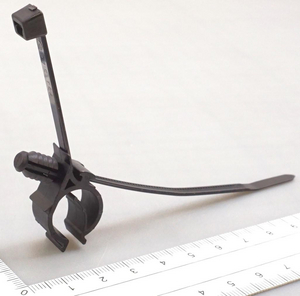

Fixing tie for hole (round)/for hole (hex), inside serrated, ⌀1.0-30.0mm, black, 500pcs.
Art.-No. 156-03281
| T50SHC11-15FT6.5-PA66HS/PA66HIRHS-BK
Copied
- Pre-assembled 2-piece element with cable clip and cable tie for round holes
- For parallel routing of cables, hoses or harnesses
- Easy to install without the need for a tool
- Cable bundles can be applicated afterwards
- For direct fixation
- Removable
- ERGO optimized footpart design, for reduced assembly forces
More products in this product group:
| Application | This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards. |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Description | Cable clip, round hole, with pipe / tube holder and cable tie, for parallel routing, black |
| Ergonomy Feature |
≤ 30 N assembly force: Product fulfills defined assembly force requirements. Details and tolerances as per technical drawing. Actual force may vary depending on the surface, assembly situation and accessibility. Verify applicability under real conditions before use to ensure applicability for the intended purpose. |
| Fixation Method | Fir Tree |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | ergonomic design |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SHC11-15FT6.5-PA66HS/PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | for parallel routing |
| Product Group | 2-piece fixing ties with fir tree |
| Short Description | Cable clip, round hole, with pipe / tube holder and cable tie, for parallel routing, black |
| Tie Closure | plastic pawl |
| Type | T50SHC11-15FT6.5 |
| UV-Stabilised | No |
| Weight/Unit | 0.002852kg |
| Attach to ⌀ | 1.0 - 30.0, 11.0 - 15.0 |
| Bundle ⌀ | 1.0-30.0mm |
| Bundle ⌀ max. | 30.0mm |
| Bundle ⌀ min. | 1.0mm |
| Fixing Hole Shape | Circular, Hexagon |
| Height (H) | 1.2mm |
| Height (H2) | 18.5mm |
| Length (L) | 160.0mm |
| Length (L2) | 28.7mm |
| Panel Thickness | 0.5 - 3.5 mm |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 11.0mm |
| for Hole ⌀ (FH) | 6.1 - 7.0 mm, 6.35 mm (hexagonal), M8 x 1.25 Threaded |
| for Panel Thickness min - max | 0.5 - 3.5 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026733562 |
| Packaging 1 - Height (m) | 0.14m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03696m³ |
| Packaging 1 - Weight (kg) | 1.469597kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Weight (kg) | 12.764476kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.22m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 32000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.171m³ |
| Packaging 4 - Weight (kg) | 124.144kg |
| Packaging 4 - Width (m) | 0.8m |
