21/05/2025

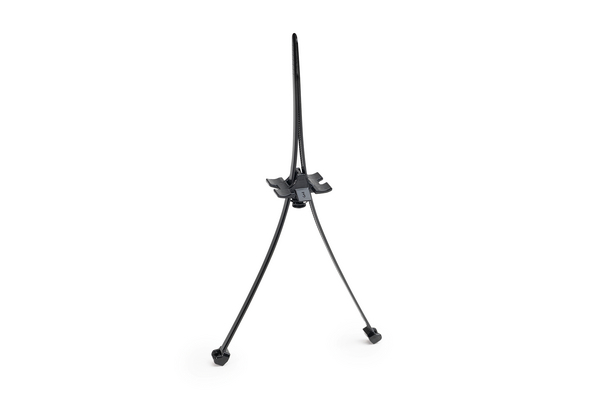

Fixing tie for hole (round), outside serrated, ⌀2.5-35.0mm, black, 500pcs.
Art.-No. 156-02563 | T50SOSDFT6LG-PA66HS/PA66HIRHS-BK |

Copied

    • Pre-assembled 2-piece fixing tie with firtree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • FT-version for parallel rounting of two bundles
    Add to watchlist
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSDFT6LG-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for parallel routing
    Product Group 2-piece fixing tie with fir tree
    Type T50SOSDFT6LG
    Bundle ⌀ 2.5-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 2.5mm
    Height (H) 1.3mm
    Height (H2) 17.0mm
    Length (L) 150mm
    Length (L2) 23.8mm
    Min.Tensile Strength 225N
    Weight/Unit 0.003027kg
    Width (W) 4.6mm
    Width (W2) 20.0mm
    for Hole ⌀ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 0.6 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026612133
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0281765m³
    Packaging 1 - Weight (kg) 1.557097kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.048388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 105.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
