30/10/2025

Fixing tie for edge, inside serrated, ⌀1.0-45.0mm, black, 500pcs.
Art.-No. 156-00665 | T50REC19-PA66W/PA66HIRHS-BK |

Copied
Cable tie with edge clip eliminates the need for drilling mounting holes, simplifying installation.

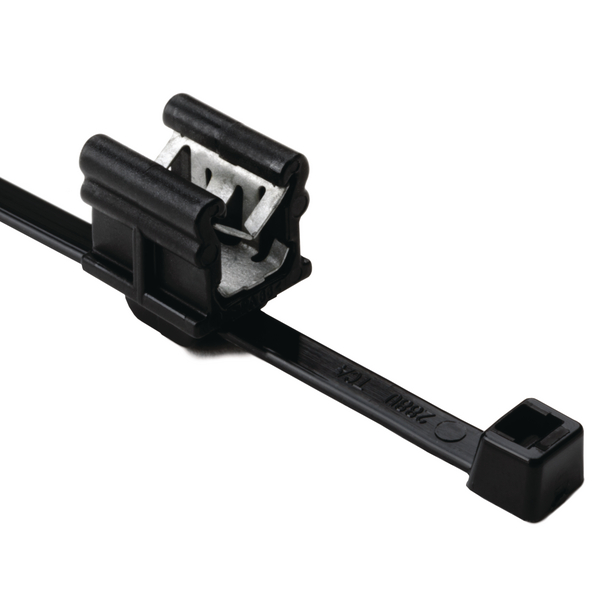

Pre-assembled 2-piece fixing tie with EdgeClip.
The Mini-EdgeClip family is our solution for limited spaces.
Five sizes (0.5 - 8.0 mm panelthickness) in one picture.

    • Pre-assembled 2-piece fixing tie with EdgeClip
    • Cable tie head can be moved after bundling
    • For minimum bundle diameters of 1 mm
    • For edges of 3 – 6 mm
    Add to watchlist
    Downloads
    Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
    Colour Black (BK)
    Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp.
    Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge.
    The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary.
    Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
    Fixation Method EdgeClip, top, assembled, 2 piece
    Identification Plate Position none
    Key product features for narrow bundling
    Material Polyamide 6.6, UV-resistant (PA66W), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50REC19-PA66W/PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
    Product Group 2-piece fixing ties for edges
    Type T50REC19
    UV-Stabilised Yes
    Variant Inside Serrated
    Bundle ⌀ 1.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 1.0mm
    Height (H) 1.2mm
    Height (H2) 17.8mm

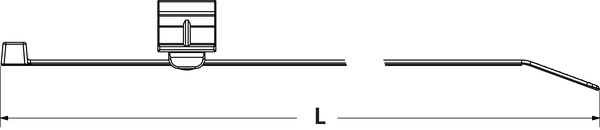

    Length (L) 200.0mm
    Length (L2) 14.8mm
    Panel Thickness max. 3.0-6.0mm
    Width (W) 4.6mm
    Width (W2) 14.8mm
    for Panel Thickness min - max 3 - 6 mm
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026409771
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
