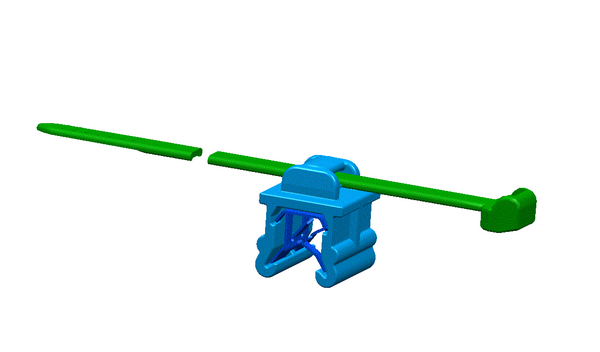

Fixing tie for edge, inside serrated, ⌀5.0-50.0mm, black, 500pcs.
Art.-No. 156-00561 | T50REC20-PP/PA66HIRHS-BK

Edge applications don’t require additional fasteners or hole drilling.
Low push-on force reduces repetitive strain injuries.
Two-piece assembly allows mount to slide along strap, ensuring proper orientation.

More products in this product group:

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Brand Family	EC-Series
Color	Black (BK)
Description	HellermannTyton's Two-Piece Edge Clip with Cable Tie assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the pull-off strength is high due to the integrated metal clamp that holds the edge clip in place.
Key product features	for narrow bundling
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50REC20-PP/PA66HIRHS-BK
Packaging Type	bag
Part No.	156-00561
Product family	2-Piece Tie Assemblies
Product family	Edge fixation products
Short Desc.	2-Piece Cable Tie with Edge Clip, 8.0" Long, EC20, 3 - 6 mm Panel, 50lb, PP/PA66HIRHSUV, Black, 500/pkg
Type	T50REC20
UV Resistant	No

Fixation Method	Edge Clip
Height (imperial)	0.05"
Height (metric)	1.2mm
Height 2 (imperial)	0.7"
Height 2 (metric)	17.8mm
Identification Plate Position	none
Length (imperial)	8.0"
Length (metric)	202.0mm
Length 2 (imperial)	0.55"
Length 2 (metric)	14.0mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Panel Thickness (imperial)	0.24"
Max. Panel Thickness (metric)	6.0mm
Min. Bundle Diameter (imperial)	0.2"
Min. Bundle Diameter (metric)	5.0mm
Min. Panel Thickness (imperial)	0.12"
Min. Panel Thickness (metric)	3.0mm
Panel Thickness (imperial)	0.12 - 0.24"
Panel Thickness (metric)	3.0 - 6.0mm
Thickness (imperial)	0.05"
Thickness (metric)	1.2mm
Width (imperial)	0.18"
Width (metric)	4.6mm
Width 2 (imperial)	0.55"
Width 2 (metric)	14.0mm

CE Certification	No
CSA Certified	No
Cable Tie	Polypropylene (PP)
Flammability	UL 94 HB
Material	PP, PA66HIRHS
Material	Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Foot Part	PA66HIRHSUV
Operating Temperature	-40°F to +239°F (-40°C to +115°C), -40°F to +230°F (-40°C to +110°C)
Prop65 Warning	No
REACH Conformity	No
ROHS compliant	Yes
