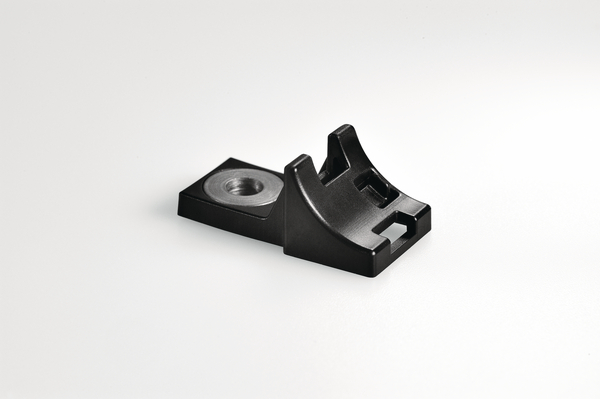

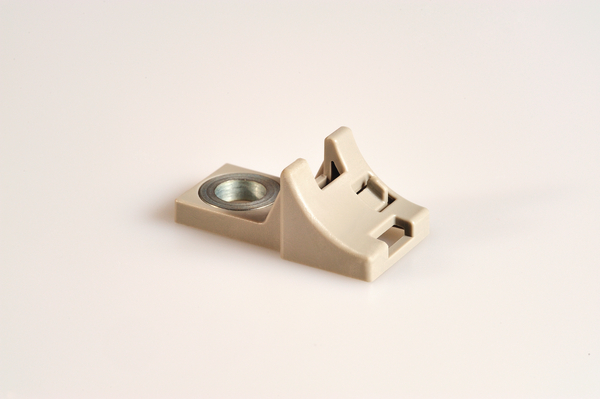

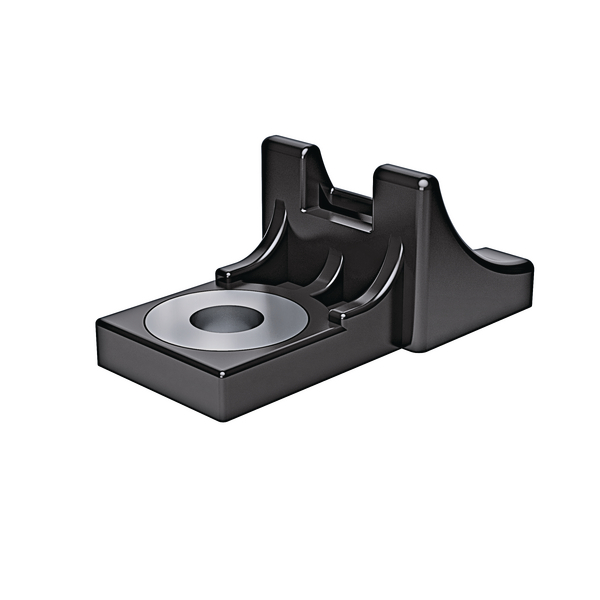

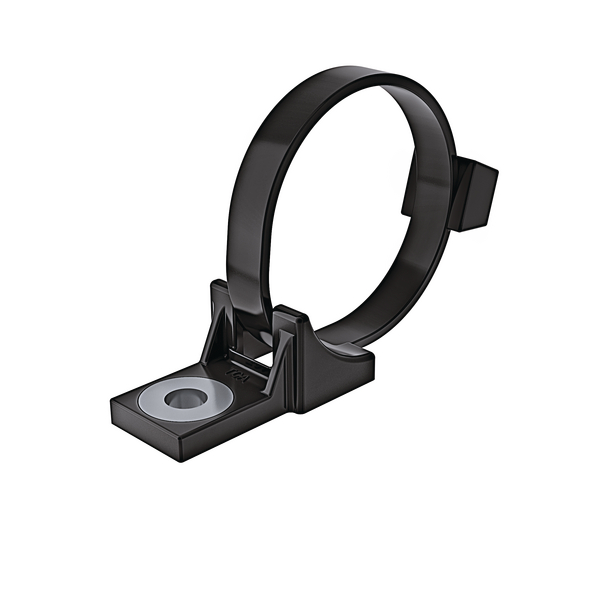

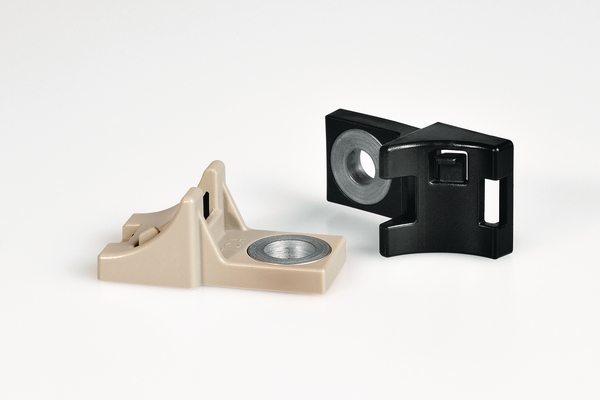

Fixing tie for screw fixation, inside serrated, ⌀15.0-50mm, grey, 1000pcs.
Art.-No. 156-00411 | T50RHDM6-PA46-GY

Copied
These HDM (Heavy duty mount) are suitable for assembling on screws.
HDM with cable tie (L = length of the tie

    • Pre-assembled 2-piece fixing tie
    • Cable tie head can be moved after bundling
    • Secure alignment to the bundle due to H-design
    • A suitable alternative for metal clamps
    • Withstands vibrations and displacement forces
    • High tightening torque through metal bushing
    Package size
    Add to watchlist
    Downloads e-Learning
    Application Used mainly in the transport sector, HDM mounts can find various applications depending on their environment. In the automotive sector, these mounts are mainly used to hold engine harnesses. Thanks to their high resistance to heat and movement, harnesses will be maintained securely. They are also found in the railway sector to maintain corrugated tubing and train harnesses. They can also be used in the military and naval sectors to route electrical cables in vehicles. Thanks to its many properties, HDM mounts can be used in many environments.
    Cable Tie Polyamide 4.6 (PA46)
    Colour Grey (GY)
    Fixation Method Fixing hole
    Foot Part Polyamide 4.6 (PA46)
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 225N
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T50RHDM6-PA46-GY
    Package Content 1000pcs.
    Package Content packed in box
    Product Family HDM6-Series for M6-Screws
    Product Group 2-piece fixing ties for heavy duty applications, for screws
    Tie Closure plastic pawl
    Type T50RHDM6
    Variant Inside Serrated
    ⌀ max. 1. loop 50mm
    Bundle ⌀ 15.0-50mm
    Bundle ⌀ max. 50mm
    Bundle ⌀ min. 15.0mm
    Height (H) 16.0mm
    Length (L) 200mm
    Length (L2) 37.5mm
    Strap Width max. (G) 0.31
    Strap Width max. (G) 7.8mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    Width (W2) 20.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +150 °C
    Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    GTIN-13 / EAN 4031026426631
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
