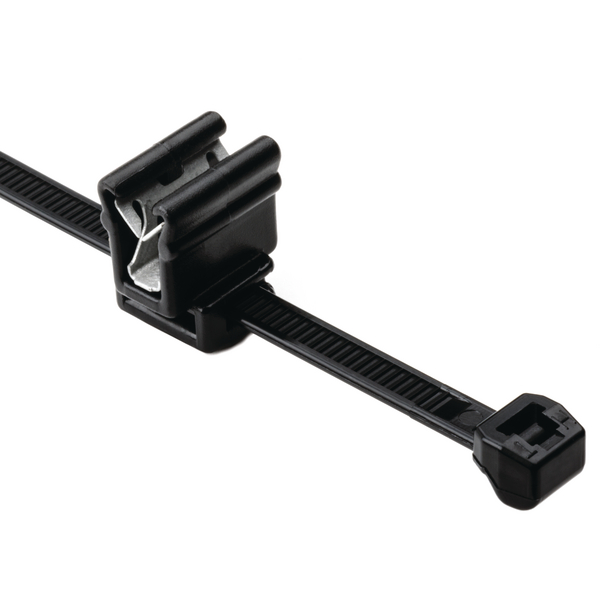

Fixing tie for edge, outside serrated, ⌀5.0-50.0mm, black, 500pcs.
Art.-No. 156-00860 | T50ROSEC4A-PA66HS/PA66HIRHS-BK

Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
Cable tie is outside serrated to reduce bundle chafing.

Package size

100 pcs.

500 pcs.

1000 pcs.

More products in this product group:

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Brand Family	EC-Series
Color	Black (BK)
Description	HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50ROSEC4A-PA66HS/PA66HIRHS-BK
Packaging Type	pack
Part No.	156-00860
Product family	2-Piece Tie Assemblies
Product family	Edge fixation products
Short Desc.	Outside Serrated Cable Tie with Edge Clip, 8.0" Long, EC4A, 1 - 3 mm Panel, 50lb, PA66HS, Black, 500/pkg
Type	T50ROSEC4A
UV Resistant	No


Fixation Method	Edge Clip
Height (imperial)	0.05"
Height (metric)	1.3mm
Height 2 (imperial)	0.63"
Height 2 (metric)	16.0mm
Identification Plate Position	none
Length (imperial)	8.0"
Length (metric)	203.2mm
Length 2 (imperial)	0.55"
Length 2 (metric)	14.0mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Panel Thickness (imperial)	0.12"
Max. Panel Thickness (metric)	3.0mm
Min. Bundle Diameter (imperial)	0.2"
Min. Bundle Diameter (metric)	5.0mm
Min. Panel Thickness (imperial)	0.04"
Min. Panel Thickness (metric)	1.0mm
Panel Thickness (imperial)	0.04 - 0.12"
Panel Thickness (metric)	1.0 - 3.0mm
Releasable Closure	No
Thickness (imperial)	0.05"
Thickness (metric)	1.2mm
Width (imperial)	0.18"
Width (metric)	4.6mm
Width 2 (imperial)	0.45"
Width 2 (metric)	11.5mm

CE Certification	No
CSA Certified	No
Cable Tie	Polyamide 6.6 heat stabilized (PA66HS)
Flammability	UL 94 HB
Material	PA66HS, PA66HIRHS
Material	Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Foot Part	PA66HIRHS
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
