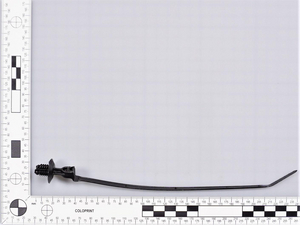

Fixing tie for hole (oval), outside serrated, ⌀2.0-50.0mm, black, 1000pcs.
Art.-No. 157-00218 | T50ROSFTOVAL12.5SO-PA66HIRHSUV-BK

All-in-one bundling and fastening solution reduces costs and assembly time.
Anti-rotational oval fastener forces bundle to travel in intended direction.

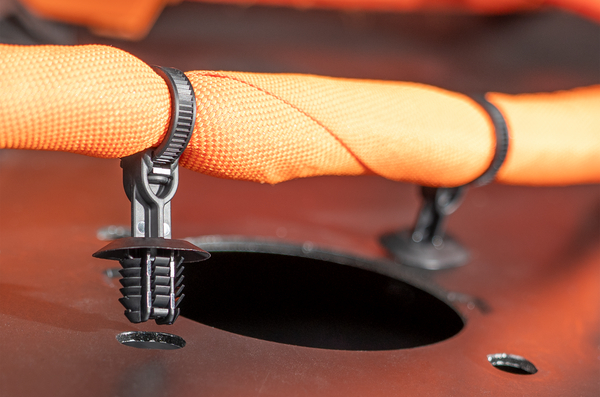

Stand-off cable ties route and position bundles above a mounting hole to protect them from rubbing, heat or obstructions.

Package size

100 pcs.

500 pcs.

1000 pcs.

3000 pcs.

More products in this product group:

This product is part of:

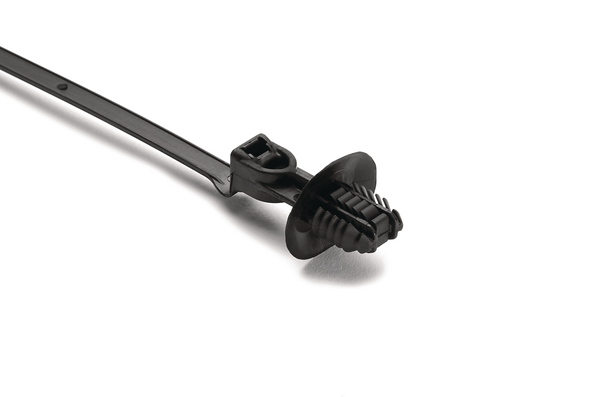

Application	One-piece standoff cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. Standoff feature positions bundles above a mounting hole. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Color	Black (BK)
Description	One-piece standoff cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. Standoff feature positions bundles above a mounting hole. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	222.4N
PART DESCRIPTION	T50ROSFTOVAL12.5SO-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	157-00218
Product family	1-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	1-Piece Cable Tie with Oval Fir Tree Mount with Disc, 9.1"L, 6.2 x 12.2 mm;6.5 x 12.5 mm;6.5 x 13.0 mm or 7.0 x 12.0 mm Mounting Hole, PA66HIRHSUV, Black, 1000/pkg
Type	T50ROSFTOVAL12.5SO
UV Resistant	Yes

Disc Diameter (imperial)	0.69 x 0.93"
Disc Diameter (metric)	17.63 x 23.63mm
Fixation Method	Fir Tree for oval holes
Height (imperial)	0.51"
Height (metric)	12.85mm
Identification Plate Position	none
Length (imperial)	9.11"
Length (metric)	231.3mm
Length 2 (imperial)	0.49"
Length 2 (metric)	12.5mm
Max. Bundle Diameter (imperial)	1.97"
Max. Bundle Diameter (metric)	50.0mm
Max. Hole Depth (imperial)	0.27"
Max. Hole Depth (metric)	6.75mm
Max. Mounting Hole Diameter (imperial)	0.51"
Max. Panel Thickness (imperial)	0.27"
Max. Panel Thickness (metric)	6.75mm
Min. Bundle Diameter (imperial)	0.08"
Min. Bundle Diameter (metric)	2.0mm
Min. Hole Depth (imperial)	0.02"
Min. Hole Depth (metric)	0.6mm
Min. Mounting Hole Diameter (imperial)	0.24"
Min. Panel Thickness (imperial)	0.02"
Min. Panel Thickness (metric)	0.6mm
Mounting Hole Diameter (imperial)	0.24 x 0.48 ", 0.26 x 0.49 ", 0.26 x 0.51 ", 0.28 x 0.47 "
Mounting Hole Diameter (metric)	6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
Mounting Hole Shape	Oval
Offset Length (imperial)	0.49"
Offset Length (metric)	12.5mm
Panel Thickness (imperial)	0.02 - 0.27"
Panel Thickness (metric)	0.6 - 6.75mm
Releasable Closure	No
Thickness (imperial)	0.06"
Thickness (metric)	1.5mm
Width (imperial)	0.20"
Width (metric)	5.1mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
