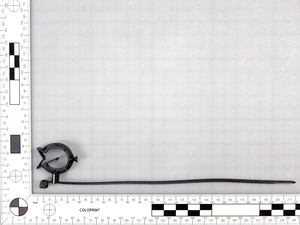

Fixing tie with pipe/tube holder, inside serrated, ⌀50.0mm, black, 500pcs.
Art.-No. 156-02551 | T50SMVCOC15-18-PA66HIRHS-BK |

Copied
T50SVCOC/T50SMVCOC
T50SMVCOC15-18

    • Clips offer an easy securing option when cable ties can't be used
    • Clips are reusable, making relocation or adjustments simple
    • Clips can be attached to the panel prior to installing the pipe or hose
    • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point
    • All-in-one bundling and mounting solution reduces costs
    Add to watchlist
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Chem. Material Properties 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC15-18-PA66HIRHS-BK

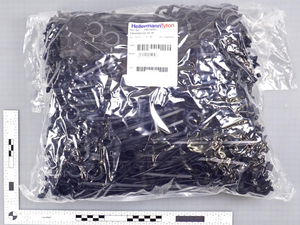

    Package Content 500pcs.
    Package Content packed in bag
    Product Family 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC15-18
    Weight/Unit 0.003475kg
    Attach to ⌀ 15.0 - 18.0
    Bundle ⌀ 50.0mm
    Bundle ⌀ max. 50.0mm
    Length (L) 210.0mm
    Width (W) 4.7mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026611693
    Packaging 1 - Height (m) 0.125m
    Packaging 1 - Length (m) 0.54m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0320625m³
    Packaging 1 - Weight (kg) 1.781097kg
    Packaging 1 - Width (m) 0.475m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.821582kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 162.888kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
