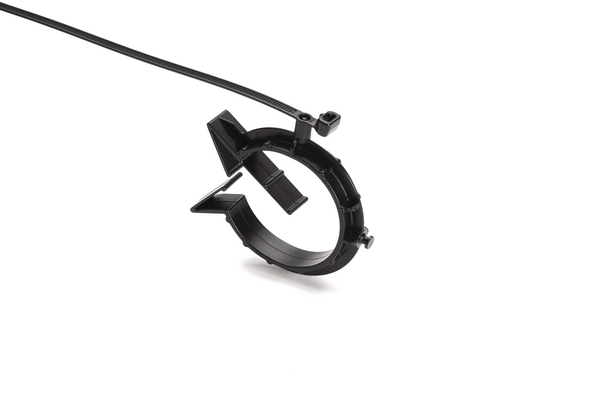

Fixing tie with pipe/tube holder, ⌀2.0-50.0mm, black, 250pcs.
Art.-No. 156-03163 | T50SMVCOC39-45-PA66HIRHSUV-BK |

Copied

    • Clips can be attached to the panel prior to installing the pipe or hose
    • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point
    • All-in-one bundling and mounting solution reduces costs
    Add to watchlist
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 222N
    PART DESCRIPTION T50SMVCOC39-45-PA66HIRHSUV-BK
    Package Content 250pcs.
    Product Family 2-Piece Fixing Ties with Pipe Clip, twistable 360°
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC39-45
    UV-Stabilised Yes
    Attach to ⌀ 39.0 - 45.0
    Bundle ⌀ 2.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 2.0mm
    Length (L) 210.0mm
    Thickness (T) 1.35mm
    Width (W) 4.7mm
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    GTIN-13 / EAN 4031026708928
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
