Fixing tie for hole (round), outside serrated, ⌀1.0-35.0mm, black, 5000pcs.
Art.-No. 157-00241 | T50SOSFT6E3-PA66HIRHS-BK

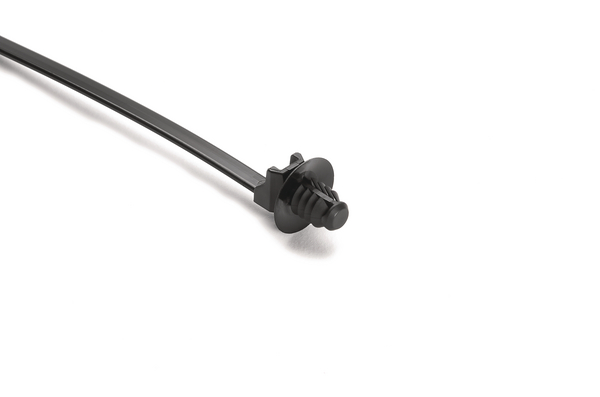

Fir Tree Push Mount offers simple and easy to use method of bundling and fixing cable ties.
The design of the fir tree ensures a positive secure fixing into panels with thicknesses from 0.7mm to 3.5mm or threaded blind holes.
The 'disc' on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.

More products in this product group:

This product is part of:

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Brand Family	T-Series
Color	Black (BK)
Description	One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
Key product features	products for automatic tools, ergonomic design
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	150N
PART DESCRIPTION	T50SOSFT6E3-PA66HIRHS-BK
Packaging Type	box
Part No.	157-00241
Product family	1-Piece Tie Assemblies
Product family	Fixing ties for holes
Short Desc.	1-Piece Cable Tie/Fir Tree Mount/Disc, 6.3"L, 6.1 - 6.9 mm Mounting Hole, PA66HIRHS, Black, 5000/pkg
Type	T50SOSFT6E3
UV Resistant	No


Cable Tie Closure	plastic pawl
Disc Diameter (imperial)	0.63"
Disc Diameter (metric)	16.0mm
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Length (imperial)	6.34"
Length (metric)	161.0mm
Max. Bundle Diameter (imperial)	1.38"
Max. Bundle Diameter (metric)	35.0mm
Max. Mounting Hole Diameter (imperial)	0.27"
Max. Panel Thickness (imperial)	0.14"
Max. Panel Thickness (metric)	3.5mm
Min. Bundle Diameter (imperial)	0.04"
Min. Bundle Diameter (metric)	1.0mm
Min. Mounting Hole Diameter (imperial)	0.24"
Min. Panel Thickness (imperial)	0.03"
Min. Panel Thickness (metric)	0.7mm
Mounting Hole Diameter (imperial)	0.24 - 0.27 "
Mounting Hole Diameter (metric)	6.1 - 6.9 mm
Mounting Hole Shape	Round
Panel Thickness (imperial)	0.03 - 0.14"
Panel Thickness (metric)	0.7 - 3.5mm
Releasable Closure	No
Width (imperial)	0.19"
Width (metric)	4.7mm

Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature	-40°F to +230°F (-40°C to +110°C)
REACH Conformity	Yes
ROHS compliant	Yes
