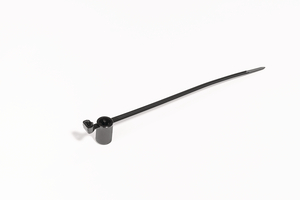

1-Piece Fixing Ties for Weld Studs T50SSBS5OT-E
T50SOSSBS5OT-E for cable routing above the stud, Article number: 155-30602
Features
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Bundle runs directly above weld stud with defined stand-off from the panel
Certifications & Approvals
Application
Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
T50SOSSBS5OT-E for cable routing above the stud is suitable for following markets and industries
More products in this product group
1-Piece Fixing Ties for Weld Studs >| Application 2 | (WS series, DCT9 & DCT 11 are for 1/4" bolts). |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Description Short (BMEcat) (max. 150 characters) | 1-Piece Fixing Tie for Weld Studs |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | T50SSBS5OT-E-PA66HS-BK |
| Product Family | T50SOSSBS5OT-E for cable routing above the stud |
| Product Group | 1-Piece Fixing Ties for Weld Studs |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 4.0mm |
| Length (L) | 160mm |
| Max Stud Length | 16.5mm |
| Max Stud Length | 0.65" |
| Min.Tensile Strength | 200N |
| Stud ∅ | 5.0 mm |
| Stud ∅ | 0.2" |
| Thickness (T) | 1.35mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026218540 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03555m³ |
| Packaging 1 - Weight (kg) | 1.2075kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.48kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 146.808kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.175kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
