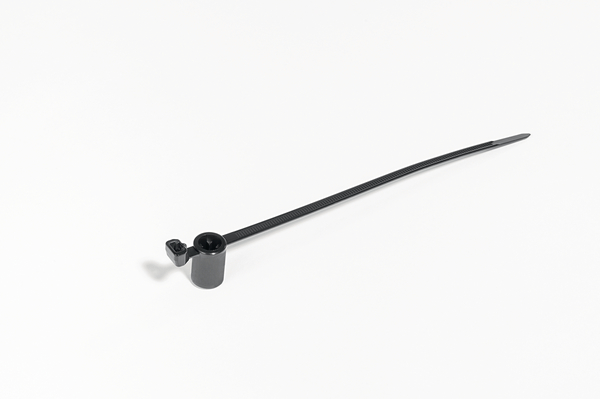

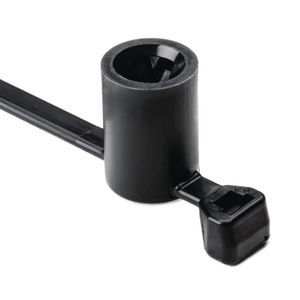

1-Piece Fixing Ties for Weld Studs, for round holes : T50SSBS5OT-E

T50SOSSBS5OT-E for cable routing above the stud, Article number: 157-00207

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Bundle runs directly above weld stud with defined stand-off from the panel

Certifications & Approvals

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

T50SOSSBS5OT-E for cable routing above the stud is suitable for following markets and industries

Application 2 (WS series, DCT9 & DCT 11 are for 1/4" bolts).
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per bag
PART DESCRIPTION T50SSBS5OT-E-PA66HS-BK
Product Family T50SOSSBS5OT-E for cable routing above the stud
Product Group 1-Piece Fixing Ties for Weld Studs, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 4.0mm
Length (L) 160mm
Max Stud Length 16.5mm
Min.Tensile Strength 200N
Stud ∅ 5.0 mm
Thickness (T) 1.35mm
Width (W) 4.6mm
Flammability UL 94 V2
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026491240
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
