Mini cable channel family
Art.-No. 151-04396
| 150STRTCHNL-PA66HIRHS(REC)-BK
|
Copied
- This sustainable option in postindustrial recycled material offers the same performance level as our PA66HIRHS products.
- The ReSource family of products helps companies meet their sustainability goals.

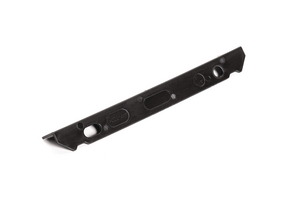

- Straight channel guides cables along linear pathways.
- High-quality polypropylene material offers high heat resistance and protects against abrasion and other environmental factors.
More products in this product group:
| Application | HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop. |
| Colour | Black (BK) |
| Description | HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly and time consuming to design and develop. |
| Material | Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC)) |
| PART DESCRIPTION | 150STRTCHNL-PA66HIRHS(REC)-BK |
| Package Content | 500pcs. |
| Package Content packed in | box |
| Product Family | Modular and interchangeable cable routing system |
| Product Group | Mini cable channel family |
| Type | 150STRTCHNL |
| UV-Stabilised | No |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +110 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | No |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. ReSource highlights HellermannTyton products that are made from recycled waste or from virgin materials with relatively lower carbon emissions. |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
