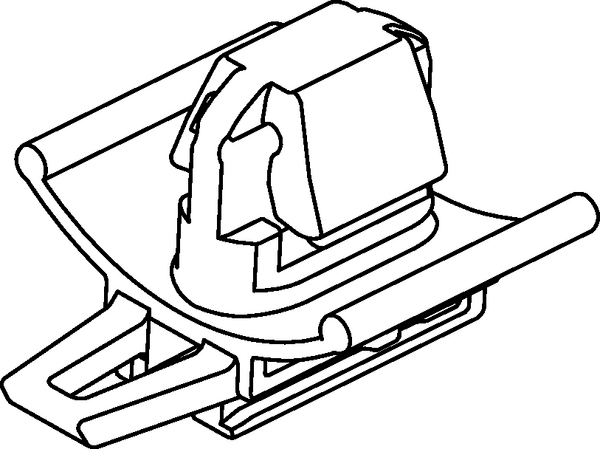

Connector clip for hole (round), black, 1000pcs.
Art.-No. 151-01539 | CCIVSFT6513T4-PA66-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access
Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6 (PA66)
PART DESCRIPTION CCIVSFT6513T4-PA66-BK
Package Content 1000pcs.
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes
Type CCIVSFT6513T4
Weight/Unit 0.001369kg
Height (H) 15.6mm
Length (L) 19.6mm
Panel Thickness max. 0.6 - 4.0mm
Width (W) 23.6mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.6 - 4 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin KR
Customs Number 39269097
GTIN-13 / EAN 4031026545691
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00645
Packaging 1 - Weight (kg) 1.369001kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.575m
Packaging 3 - Qty 8000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0476
Packaging 3 - Weight (kg) 11.452kg
Packaging 3 - Width (m) 0.385m
Packaging 4 - Height (m) 1.219m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.17
Packaging 4 - Weight (kg) 250.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
