Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01356 | YCCSFT6.5x13PT2.5-3.5-PA66HIRHS-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access
Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION YCCSFT6.5x13PT2.5-3.5-PA66HIRHS-BK
Package Content 500pcs.
Package Content packed in bag
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes

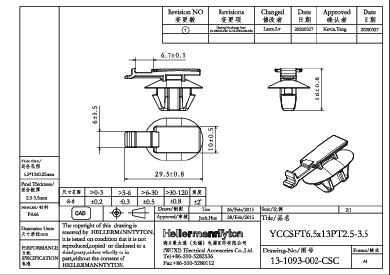

Type YCCSFT6.5x13PT2.5-3.5
Weight/Unit 0.00115kg
Height (H) 16.1mm
Length (L) 29.5mm
Panel Thickness max. 2.5-3.5mm
Width (W) 19.0mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 2.5 - 3.5 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026519012
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.313m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00395945
Packaging 1 - Weight (kg) 0.575001kg
Packaging 1 - Width (m) 0.253m
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0489
Packaging 3 - Weight (kg) 6.45501kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.244m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.194
Packaging 4 - Weight (kg) 150.1kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
