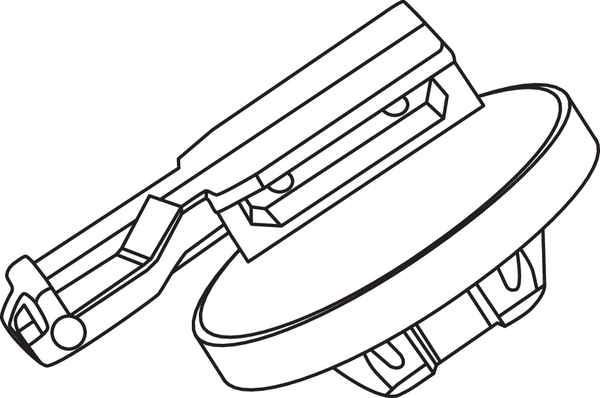

Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01312 | CCSFT6.5X12.5-MD-PA66HIRHS-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access
Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCSFT6.5X12.5-MD-PA66HIRHS-BK
Package Content 500pcs.
Package Content packed in bag
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes, sealed
Type CCSFT6.5X12.5-MD
Weight/Unit 0.001391kg
Height (H) 16.0mm
Length (L) 32.0mm
Panel Thickness max. 0.6 - 1.5mm
Width (W) 16.0mm
for Hole ⌀ (FH) 6.5 x 12.5 mm
for Panel Thickness min - max 0.6 - 1.5 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026511030
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0056
Packaging 1 - Weight (kg) 0.695501kg
Packaging 1 - Width (m) 0.28m
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0489
Packaging 3 - Weight (kg) 6.269008kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.244m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.194
Packaging 4 - Weight (kg) 146.38kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
