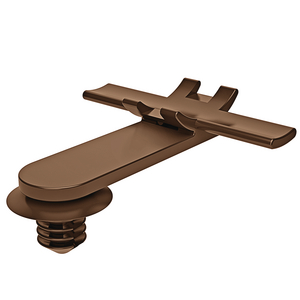

Bundling clip for hole (round), L=42.0mm, SO=20.0mm, brown, 500pcs.
Art.-No. 151-01097
| COW20DP7-PA66HS-BN
Copied
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
More products in this product group:
| Application | Originally designed for the automotive industry, these clips offer simple and easy methods of securing cables, hoses or pipes. |
| Color | Brown (BN) |

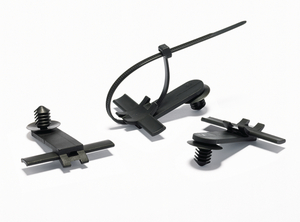

| Description | Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions. |
| PART DESCRIPTION | COW20DP7-PA66HS-BN |
| Packaging Type | bag |
| Part No. | 151-01097 |
| Product family | Bundling Clips |
| Product family | Bundling Clips |
| Type | COW20DP7 |
|
|
|
| Fixation Method | Fir Tree |
| Height (metric) | 6.6mm |
| Length (metric) | 42.0mm |
| Length 2 (metric) | 20.0mm |
| Max. Panel Thickness (metric) | 4.50mm |
| Min. Panel Thickness (metric) | 0.80mm |
| Mounting Hole Diameter (metric) | 6.3 - 7.0 mm |
| Mounting Hole Shape | Round |
| Offset Length (metric) | 20.0mm |
| Panel Thickness (metric) | 0.8 - 4.5mm |
| Tape Bar Length (metric) | 42.0mm |
| Width (metric) | 42.0mm |
