Cable clip for hole (round)/for stud, ⌀M8, Dmin=24.5mm, Dmax=25.5mm
Art.-No. 151-03995 | HDC25x2-PA66GF15/TPE-BK

TPE layer protects cables and prevents rotation and axial slide, for a positive hold without crushing bundles.
Clamps are stackable to minimize space.
Anti-rotation feature prevents clamps from rotating while bolting down.
Releasable latch allows access to routings for serviceability.

More products in this product group:

Color	Black (BK)
Description	This clamp system can protect HV cable wires in double cable routing applications and is secured using hardware. Clamp halves are sold individually; order two of these parts for every one clamp desired.
Key product features	vibration absorbing, sealed, for multiple routing
PART DESCRIPTION	HDC25x2-PA66GF15/TPE-BK
Packaging Type	carton
Part No.	151-03995
Product family	Bundle Separation Clamps
Product family	Products for wires and hoses, Products for parallel/multiple routing
Short Desc.	Dual Bundle High Voltage Clamp, Anti-Rotation, 25.0 mm Bundle Dia, PA66GF15%/TPE, Black, 350/ctn
Type	HDC25x2
UV Resistant	No

Fixation Method	Stud Mount

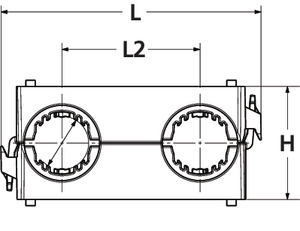

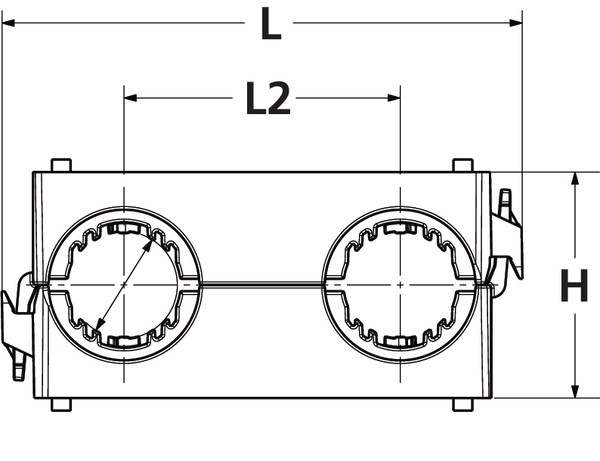

Height (imperial)	1.50"
Height (metric)	38.0mm
Height 2 (imperial)	0.75"
Height 2 (metric)	19.0mm
Length (imperial)	3.48"
Length (metric)	88.5mm
Length 2 (imperial)	1.73"
Length 2 (metric)	44.0mm
Max. Bundle Diameter (imperial)	1.00"
Max. Bundle Diameter (metric)	25.5mm
Max. Bundle Diameter First Hole (imperial)	1.00"
Max. Bundle Diameter First Hole (metric)	25.5mm
Max. Bundle Diameter Second Hole (imperial)	1.00"
Max. Bundle Diameter Second Hole (metric)	25.5mm
Min. Bundle Diameter (imperial)	0.96"
Min. Bundle Diameter (metric)	24.5mm
Mounting Hole Diameter (imperial)	0.31 x 0.05 "
Mounting Hole Diameter (metric)	M8
Width (imperial)	1.02"
Width (metric)	26.0mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66GF15, TPE
Material	Polyamide 6.6 glass fiber reinforced (PA66GF15%), Thermoplastic Elastomer (TPE)
Operating Temperature	-40°F to +257°F (-40°C to +125°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
Reusable (Yes/No)	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	350
Pkg. Qty.	350Pieces
