Grommet Edging - Special Materials
Art.-No. 800-00006 | SM1-PVC-BK

Copied
EdgeGuard - SM1 - PVC edge protection.
Easily cut to the right length with scissors, thus reducing stock and eliminating waste.
SM1
Easily cut to the right length with scissors, thus reducing stock and eliminating waste.

    • Fits in holes of all shapes and sizes without the aid of tools or adhesives, making installation easy.
    • Easily cut to the right length with scissors, thus reducing stock and eliminating waste.
    • Can be used on any type of material including wood, steel, aluminum, plexiglass and glass, ensuring flexibility of application.
    Package size
    Add to watchlist
    Downloads
    Application EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
    Color Black (BK)
    Description EdgeGuard is used to cover panel edging to protect cables, prevent chafing and provide an attractive finish.The EdgeGuard is manufactured from a flexible PVC compound ensuring ease of use.
    PART DESCRIPTION SM1-PVC-BK
    Packaging Type lengths
    Part No. SM1BK560MT
    Product family Cable Protection Systems
    Type SM1

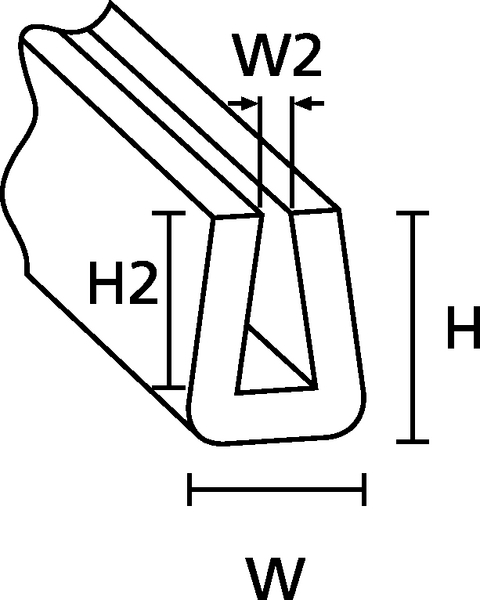

    Height (metric) 6.3mm
    Height 2 (metric) 4.9mm
    Length (metric) 75m
    Max. Panel Thickness (metric) 2.00mm
    Min. Panel Thickness (metric) 1.00mm
    Panel Thickness (metric) 1.0mm
    Width (metric) 5.0mm
    Width 2 (metric) 1.0mm
    Width 3 (metric) 1.8mm
    Width 4 (metric) 4.2mm
    Flammability UL 94 HB
    Material PVC
    Material Polyvinylchloride (PVC)
    Operating Temperature -85°F to +221°F (-65°C to +105°C)
    ROHS compliant Yes
    Pkg. Qty. 560m
    Pkg. Qty. 1837.3ft
