20/09/2025

Grommet strip, T=2.3mm, W=4.4mm, W2=2.3mm, H=5.2mm, H2=4.0mm, -40 °C to +85 °C, natural, 100m
Art.-No. 251-06006 | TH-024-PA6-NA |

Copied

    • Very flexible
    • Easy to apply
    • Protects cables from chafing on bulkheads
    Add to watchlist
    Downloads

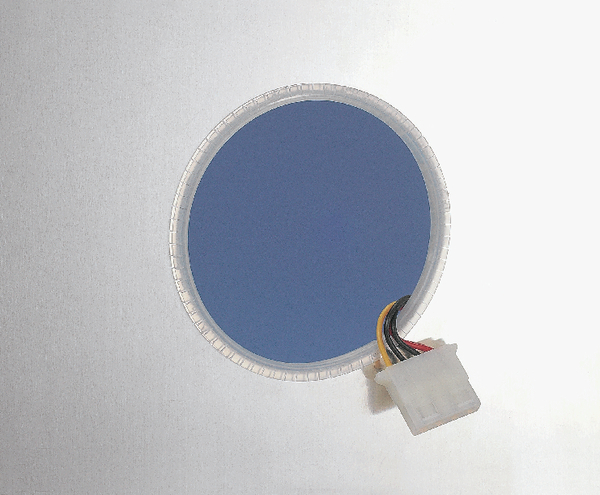

    Application EdgeGuard is used to cover panel edging to prevent chafing and provide an attractive finish.
    Colour Natural (NA)
    Material Polyamide 6 (PA6)
    PART DESCRIPTION TH-024-PA6-NA
    Package Content 100m

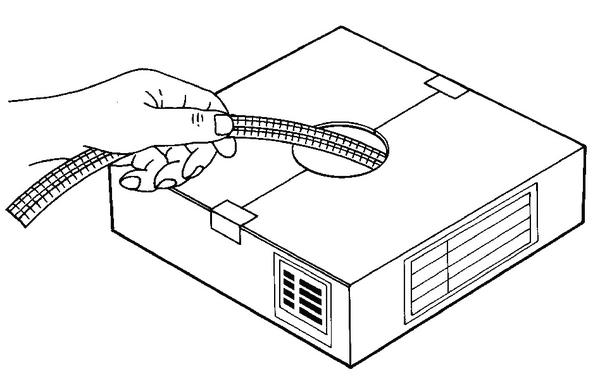

    Package Content packed in box
    Product Family EdgeGuard
    Product Group Edge protection
    Type TH-024

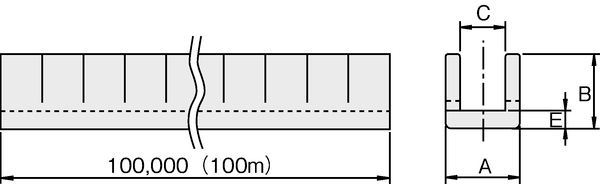

    Height (H) 5.2mm
    Height (H2) 4.0mm
    Length (L) 100m
    Panel Thickness max. 2.3mm
    Wall (WT) 1.2mm
    Width (W) 4.4mm
    Width (W2) 2.3mm
    for Panel Thickness min - max - 2.3
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387509205
    ETIM 7.0 Key EC001937
    ETIM 8.0 Key EC001937
    ETIM 9.0 Key EC001937
