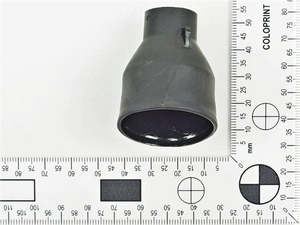

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Art.-No. 411-54573 | 1154-6-HW21-PO-X-BK Details

  • Used in conjunction with a circular grooved adaptor
  • Provides strain relief and an environmental seal
Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool H6100, CHG900
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
Pack Cont. 1pc.

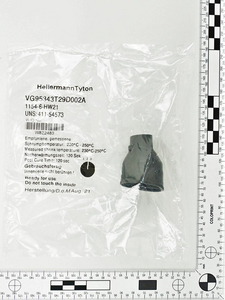

Package Content packed in bag
PART DESCRIPTION 1154-6-HW21-PO-X-BK
Product Family Helashrink 1100 Series, with rib
Product Group Right-Angle Shapes, VG style
Short Description Right-Angle Shape VG-Style with Rib for Plugs black, PO-X
Variant For plug
Angle 90°
Flexibility Flexible
HW ± 20 % 1.5mm
JW ± 30 % 0.8mm
P ± 20% 41.0mm
R ± 10 % 27mm
S nom. 12mm
T ± 20 % 1mm
V max. 3.3mm
Weight/Unit 0.004202kg
∅H max. b 14.5mm
∅H min. a 30mm
∅J max. b 6mm
∅J min. a 15mm
Adhesive W21
Designation as per VG-Norm VG 95343 T29 D 002 A
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Halogen-free Yes
Hazardous Goods No
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +105 °C
Specifications
Specifications VG 95343-29:2012-09
Tensile Strength 10MPa
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 5022660636028
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00107
Packaging 1 - Weight (kg) 0.004203kg
Packaging 1 - Width (m) 0.165m
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
