Low Profile Right Angle Boot with Adapter Lip black
Art.-No. 422-30301 | 333F364-9-PO-X-BK

Copied

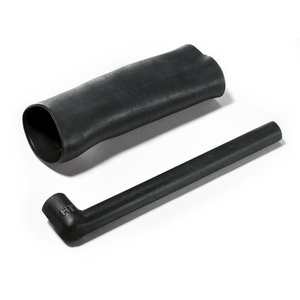

333F322-385 Series supplied / fully recovered.
b: Fully recovered form (after heating)
Fully recovered form (after heating)
a: Expanded form (supplied)

    • Connector strain relief for small cable diameters requiring high shrink ratio
    Package size
    Add to watchlist
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Brand Family HELASHRINK
    Color Black (BK)
    Description Long-tail right-angle boot design provides strain relief in applications with partially loaded connectors, resulting in small cable diameters requiring a high shrink ratio.
    PART DESCRIPTION 333F364-9-PO-X-BK
    Packaging Type bag
    Part No. 422-30301
    Short Desc. Heat Shrink Molded Shapes, Long-Tail Right-Angle Boot, 333F364-9, PO-X, BK, 5/bag
    Type 333F364-9
    UV Resistant No
    ⌀H max. b 27.9mm
    ⌀H min. a 38.8mm
    ⌀J max. b 10.9mm
    ⌀J min. a 31.4mm
    Angle 90
    Flexibility Flexible
    For Object Outside Diameter 30.08-36.62 mm
    Max. Bundle Diameter (imperial) 0"
    Max. Diameter J b .43"
    Max. Recovered Diameter b 1.09"
    Min. Bundle Diameter (imperial) 0"
    Min. Diameter J a 1.22"
    Min. Supplied Diameter a 1.51"
    P ± 10 % 185.1mm
    P ± 10% 7.22"
    Shrink Ratio 3:1
    Flammability ASTM D635
    Material PO-X
    Material Polyolefin, cross-linked (PO-X)
    Min. Shrink Temperature +212 °F (+100 °C)
    Operating Temperature -67°F to +248°F (-55°C to +120°C)
    REACH Conformity No
    ROHS compliant Yes
    Packaging 1 - Weight (kg) 0.065001kg
    Pkg. Qty. 5
    Pkg. Qty. 5Pieces
