Low Profile Transition Boots


Art.-No. 422-40301

| 412H625-9-PO-X-BK

 |

Copied

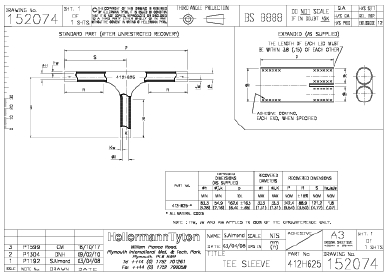

412H622-625 Series supplied / fully recovered.
a: Expanded form (supplied)
Fully recovered form (after heating)
b: Fully recovered form (after heating)

    • Connector cable strain relief
    • Used with circular adaptors
    Package size
    Add to watchlist
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 412H625-9-PO-X-BK
    Package Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 412H Series, side breakout
    Product Group Low Profile Transition Boots
    Shrink Ratio 3:1
    Type 412H625-9
    Variant For 2-core cables
    ⌀H max. b 33.2mm
    ⌀H min. a 83.3mm
    ⌀J max. b 33.2mm
    ⌀J min. a 54.8mm
    ⌀K max. b 33.2mm
    ⌀K min. a 54.8mm
    Flexibility semi rigid
    For Object Outside Diameter 43.22-73.28 mm
    HO/JO/KO ± 10% 88.9mm
    P nom. 242.3mm
    P ± 10 % 242.3mm
    R/S nom. 121.1mm
    Tube Shape Angle
    W nom. 1.7mm
    Dielectric Strength 20kV/mm
    Dielectric Strength test method IEC 243
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Country of Origin GB
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
