MegaBand Category 5e : PP110C5E12

1U 24 Port Panel, Article number: 853-20073


  • Exceeds all Category 5e performance standards
  • Port label numbers printed on panel fascia
  • Rack Snap rack mounting fixings included
  • Slide in labelling kit included
  • Rear cable management available
  • Also available in a 2U 48 port configuration
  • Backward compatible with Category 5 and voice applications

Certifications & Approvals


• Jack life min. 1000 insertions
• Wire gauge 22-26 AWG
• IDC life up to 50 re-terminations
• Max. of two wires per contact (same gauge)

Colour Black (BK)
Description The MegaBand Panel has been designed to offer exceptional Category 5e performance and value and is available in 1U 24 port and 2U 48 port versions with optional rear cable management. The panel presents 24 Category 5e ports in 1U of space and is supplied with a sliding label panel and Rack Snap mounting fixings as standard. The MegaBand products are designed to support any data or voice protocol capable of running over a Category 5e cabling system.
Pack Cont. 1pc.
Package Quantity per box
Performance Category Category 5E (Class D)
Port count 12
Product Family 1U 24 Port Panel
Product Group MegaBand Category 5e
Technical Description The MegaBand Panel is manufactured from black powder coated mild steel. Port label numbers are printed on the panel fascia of the MegaBand panel and it is supplied with coloured IDC labelling at the rear of the panel. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Alpha Label software package is available for download at and enables straight forward port labelling. The Megaband Category 5e Panel offers backward compatibility with Category 5 and voice products.

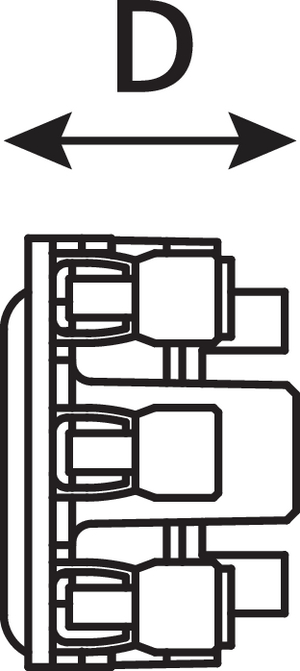

Depth (D) 28.0mm
Depth D2 (metric) 28.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E216789
Wiring 568A
Dimensions W x H x D 483.0 mm x 44.0 mm x 28.0 mm
EAN / GTIN 5022660839399
UNSPSC Key 43223309
