Cable tie tool for 2.5 - 2.5mm, pneumatic, 18kg, silver
Art.-No. 105-00000 | QS101-ST-SR |

Copied

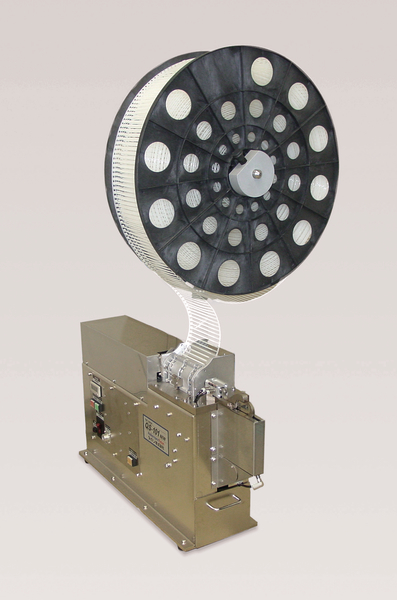

The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.
The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.
The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.

    • Automatic binding machine of desk type and air type (maximum binding diameter: 16.0 mm).
    • •Desktop installation type. Bundled by pressing the foot pedal that you can work with both hands.
    • •Easy to install anywhere with power supply (AC100V ~ AC240V) and air supply equipment.
    • •A stable and reliable bundling operation.
    Add to watchlist
    Application Harness Binding
    Colour Silver (SR)
    For Cable Tie Width 0.1 - 0.1"
    For Cable Tie Width 2.5 - 2.5mm
    For Ties AZ100, QTTIE
    Material Steel (ST)
    Operation pneumatic
    Operational Voltage 20
    PART DESCRIPTION QS101-ST-SR
    Package Content 1pc.
    Package Content packed in pack
    Power Supply Electrical/Pneumatic Power
    Power Supply unit 100-240 VAC
    Product Family Autotool QS101 NEW
    Product Group Bench Mount Automatic bundling up to ⌀ 16 mm
    Tension force (N) 39.2-88.2N
    Tool suitable cable tie material Plastic
    Type QS101
    UV-Stabilised No
    Wattage 70W
    Weight/Unit 18kg
    Bundle ⌀ 0.7-16.0mm
    Bundle ⌀ max. 16.0mm
    Bundle ⌀ min. 0.7mm
    Height (H) 770mm
    Length (L) 630mm
    Strap Width max. (G) 0.10"
    Strap Width max. (G) 2.5mm
    Tension Setting Adjustable
    Width (W) 210mm
    CE Certification No
    CSA Certified No
    ROHS compliant No
    Country of Origin JP
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 20kg
    UNSPSC Key 27112410
