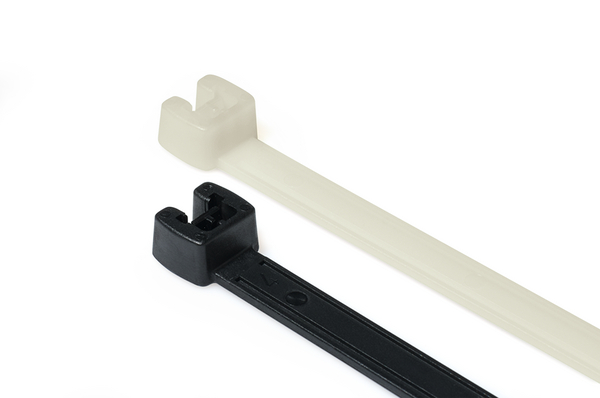

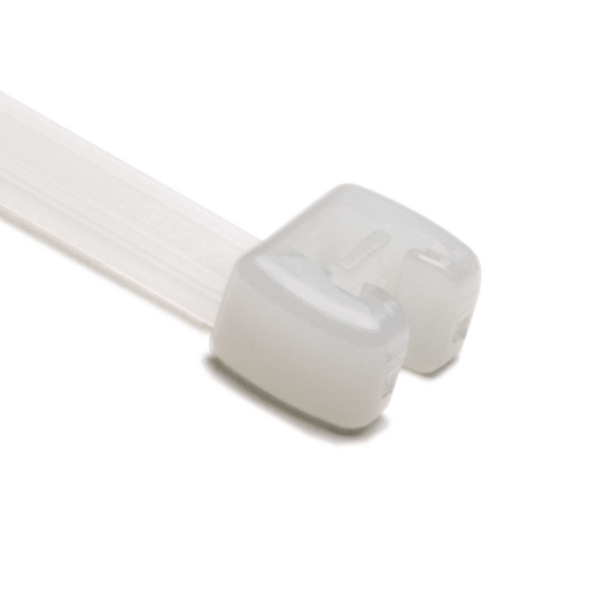

Cable tie inside serrated, 210x4.7mm, ⌀3.0-50.0mm, natural, 100pcs.
Art.-No. 109-00134 | Q50R-PA66HS-NA

Copied
Cable tie, Q-tie.
2. Pull the tie through the head until the bundle is fixed. 3. Cut off the remaining part of the tie with an application tool.
1. Insert tail into lock head and push tail partly in the head
Q-ties can be used for both temporary and final cable installation.
Q-tie cable tie
Q-tie cable ties: choose from a wide product range in different sizes.
Q-tie cable tie
5. The thin part of the cable tie can be simply placed into the open lock head. 6. The large ribbed tail allows a safe and ergonomic installation. 7. Integrated pre locking feature (starts with type Q30).
1. Open lock head for quick and easy insertion 2. Two rails on the strap ensure a perfect guidance for the tracks in the head 3. The locking device interacts safely with the serration of the cable tie 4. The tracks prevent a deformation of the head under load.
Q-tie cable ties: choose from a wide product range in different materials.
Cable tie, Q-tie.
Q-Series
3. When installation is finished, Q-tie can be tightened and cut off - either manually or with an application tool.
2. To release the tie push tail end slightly out of head.
Even under difficult circumstances the Q-tie cable tie is very fast and easy to apply.
The Q-mount base locks the Q-tie in vertical position, your hands are free to apply the cables.
1. Insert the thin part of the cable tie into the open lock head.

    • PA66HS cable ties are heat stabilized for excellent heat resistance.
    • Open-head design with easily detectable slot opening allows for fast and easy insertion.
    • Pre-lock feature allows for a temporary hold while preparing bundle.
    • Large ribbed tail ensures simple, ergonomic installation.
    Add to watchlist
    Downloads e-Learning
    Application Q-Series cable ties for bundling and securing cables, pipes a.d hoses. The innovative and effective cable ties enable a simple and quick installation.
    Brand Family Q-TIE
    Color Natural (NA)
    Description Q-Ties have a distinctive open-style head, a pre-lock function, and a large ribbed tail. The easily detectable slot opening offered with the tail and tie head provides ease of placement when working with gloves or for blind applications with limited view of the installation. The pre-lock feature allows for temporary holding of cable and wire bundles, permitting additional cables and wires to be placed without destroying the cable tie. Q-Ties can be tensioned by hand or with one of HellermannTyton’s mechanical cable tie application tools.
    Min. Tensile Strength (imperial) 50lbs
    Min. Tensile Strength (metric) 220N
    PART DESCRIPTION Q50R-PA66HS-NA
    Packaging Type bag
    Part No. 109-00134
    Product family Cable Ties
    Product family Cable Ties
    Short Desc. Q Tie, 8.3" Long, 50lb Tensile Strength, PA66HS, Natural, 100/pkg
    Type Q50R
    Cable Tie Closure plastic pawl
    Identification Plate Position none
    Length (imperial) 8.3"
    Length (metric) 210mm
    Max. Bundle Diameter (imperial) 2.0"
    Max. Bundle Diameter (metric) 50.0mm
    Min. Bundle Diameter (imperial) 0.12"
    Min. Bundle Diameter (metric) 3.0mm
    Releasable Closure No
    Thickness (imperial) 0.06"
    Thickness (metric) 1.5mm
    Width (imperial) 0.19"
    Width (metric) 4.7mm
    Flammability UL 94 V-2
    Halogen Free Yes
    Material PA66HS
    Material Polyamide 6.6 heat stabilized (PA66HS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    REACH Conformity Yes
    ROHS compliant Yes
    UL File Number [Logo] E65344 [cULus]
    UL Listed (US and Canada) Yes
    UL Listed (US) Yes
    Customs Number 3926909988
    Packaging 1 - Weight (kg) 0.130001kg
    Pkg. Qty. 100
    Pkg. Qty. 100Pieces
