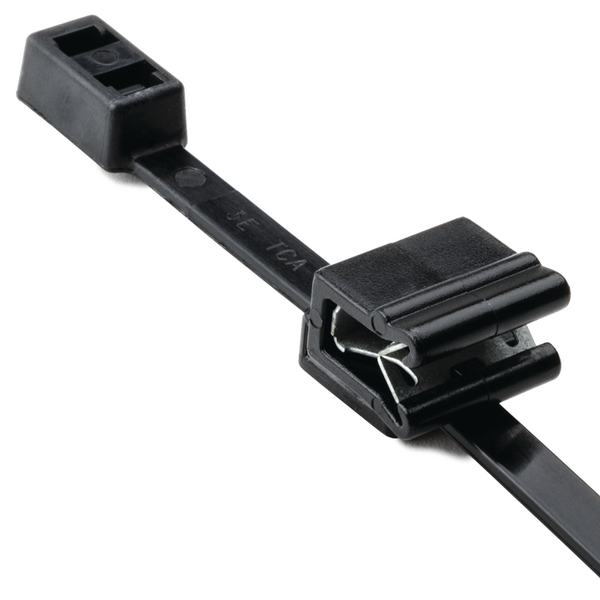

Fixing tie for edge, Ø2.0-45.0mm, black, 500pcs.
Art.-No. 156-01007 | T50RDHEC5A-PA66HS/PA66HIRHS-BK | Details

Reusable fastener can be removed from threaded or non-threaded holes using a 5/16

Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling
EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
For edges of 1 – 3 mm

Add to watchlist

Downloads CAD-Download

More products in this product group:

2-piece fixing ties for edges >

Base Data

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Application Tool	ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method	EdgeClip, sideway, assembled, 2 piece
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont.	500pcs.
Package Content packed in	bag
PART DESCRIPTION	T50RDHEC5A-PA66HS/PA66HIRHS-BK
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Short Description	2-Piece Fixing Tie 210x4.7 for Edges 1-3 mm black
Tie Closure	doublehead

Product Dimensions

Bundle Diameter max (metric)	45.0mm
Bundle ∅	2.0-45.0mm
Bundle ∅ min.	2.0mm
for Panel Thickness min - max	1 - 3 mm
for Panel Thickness min - max	0 - 0.1 "
Height (H)	1.4mm
Height (H2)	15.5mm
Length (L)	210.0mm
Length (L2)	14.0mm
Min. Tensile Strength 2nd loop	180N
Min.Tensile Strength	225N
Thickness (T)	1.2mm
Weight/Unit	0.003114kg
Width (W)	4.7mm
Width (W2)	12.0mm
∅ max. 1. loop	19.0mm
∅ max. 2. loops	19.0mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026230863
Packaging 1 - Height (m)	0.09m
Packaging 1 - Length (m)	0.455m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01597m³
Packaging 1 - Weight (kg)	1.557001kg
