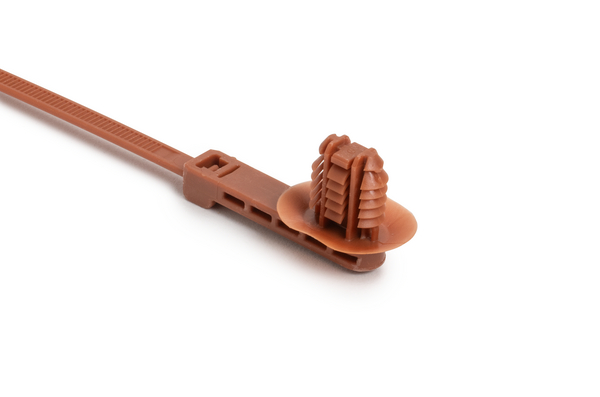

Fixing tie for hole (oval), outside serrated, ⌀2.0-50.0mm, brown, 500pcs.
Art.-No. 157-00545 | T50ROSFTOVALIL25A-PA46-BN

Copied
  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
  • 1-Piece Fixing Tie with defined offset 12.5 and 25.0 mm
Colour Brown (BN)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 4.6 (PA46)
Min.Tensile Strength 225N
PART DESCRIPTION T50ROSFTOVALIL25A-PA46-BN
Package Content 500pcs.
Package Content packed in pack
Product Family with offset 12.5 and 25.0 mm
Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for oval holes
Releasable Closure (Yes/No) No
Type T50ROSFTOVALIL25A
UV-Stabilised No
Variant Outside Serrated
Bundle ⌀ 2.0-50.0mm
Bundle ⌀ max. 50.0mm
Bundle ⌀ min. 2.0mm
Disc ⌀ 17.63 x 23.63mm
Fixing Hole Shape Oval
Height (H) 12.85mm
Length (L) 232.3mm
Length (L2) 25.0mm
Offset Length 25.0mm
Panel Thickness max. 0.6 - 6.75mm
Thickness (T) 1.35mm
Width (W) 4.70mm
for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6.8 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +130 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin US
GTIN-13 / EAN 4031026754598
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.6064m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Width (m) 0.3984625m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
