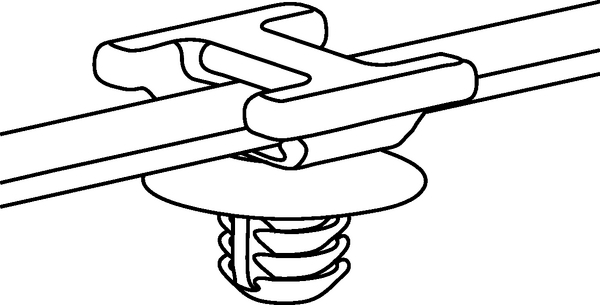

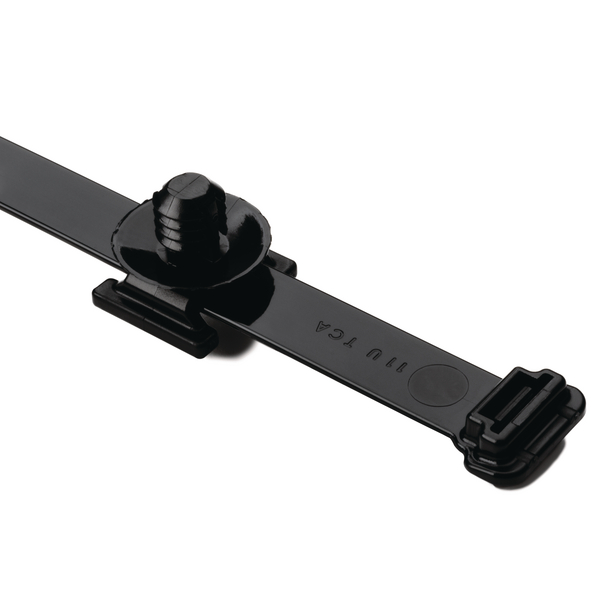

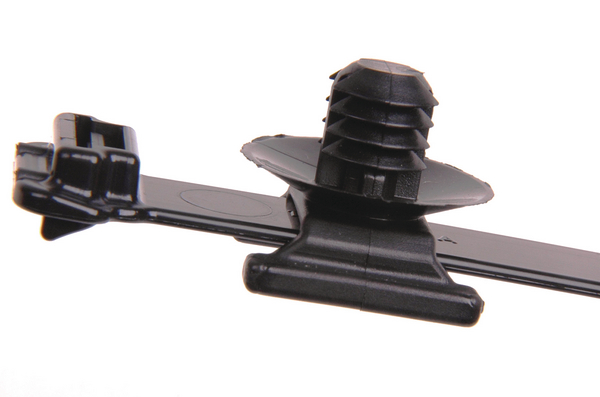

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes WSRFT9A

Fir Tree Parts FT9, Article number: 156-00070

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT9 is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Black (BK)
Fixation Method Fir Tree
Identification Plate Position none
Pack Cont. 100
Package Quantity per bag
PART DESCRIPTION WSRFT9A-PA66HIRHSUV-BK
Product Family Fir Tree Parts FT9
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle ∅ max. 105.0mm
Disc ∅ 21.6mm
for Hole ∅ (FH) 8.7 - 9.2 mm
for Panel Thickness min - max 1 - 6.5 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 19.10mm
Height (H2) 9.0mm
Length (L) 380.0mm
Min.Tensile Strength 535N
Panel Thickness max. 1.0–6.5mm
Width (W) 12.7mm
Width (W2) 13.0mm
Flammability UL 94 HB
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026416168
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
