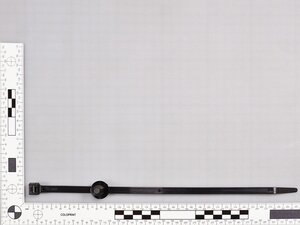

Fixing tie for hole (round), inside serrated, Ø8.0-80mm, black, 100pcs.
Art.-No. 156-01252 | T120IFT9-PA66HS/PA66HIRHS-BK |  Details

For applications with pre-drilled holes from 9.0 mm, panel thicknesses up to 11.0 mm and a max. bundling diaemter of 80.0 mm.

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Show more
    Package size
    Add to watchlist
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Application Method Can only be mounted with a tool, like a hammer.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Black (BK)
    Fixation Method Fir Tree
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 100pcs.

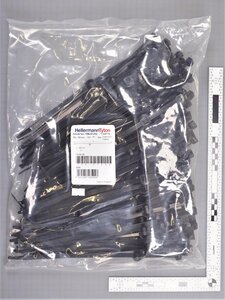

    Package Content packed in bag
    PART DESCRIPTION T120IFT9-PA66HS/PA66HIRHS-BK
    Product Family Fir tree parts FT9
    Product Group 2-piece fixing ties with fir tree, with disc, for round holes
    Tie Closure plastic pawl
    Variant Inside Serrated
    Bundle Diameter max (metric) 80mm
    Bundle ∅ 8.0-80mm
    Bundle ∅ min. 8.0mm
    Cable Tie Head Height (metric) 7.7mm
    Cable Tie Head Length (metric) 10.2mm
    Cable Tie Head Width (metric) 13.0mm
    Disc ∅ 20.0mm
    for Hole ∅ (FH) 9.0 - 10.6 mm
    for Panel Thickness min - max 5 - 11 mm
    Height (H) 27mm
    Height (H2) 18.8mm
    Length (L) 300.0mm
    Length (L2) 15.0mm
    Min.Tensile Strength 535N
    Panel Thickness max. 5.0 - 11. 0mm
    Thickness (T) 1.5mm
    Weight/Unit 0.006123kg
    Width (W) 7.6mm
    Width (W2) 13.0mm
    Width (W3) 20mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026485928
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.33m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00644m³
    Packaging 1 - Weight (kg) 0.612301kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 6.87301kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.234m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.185m³
    Packaging 4 - Weight (kg) 158.46kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
