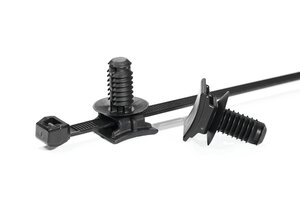

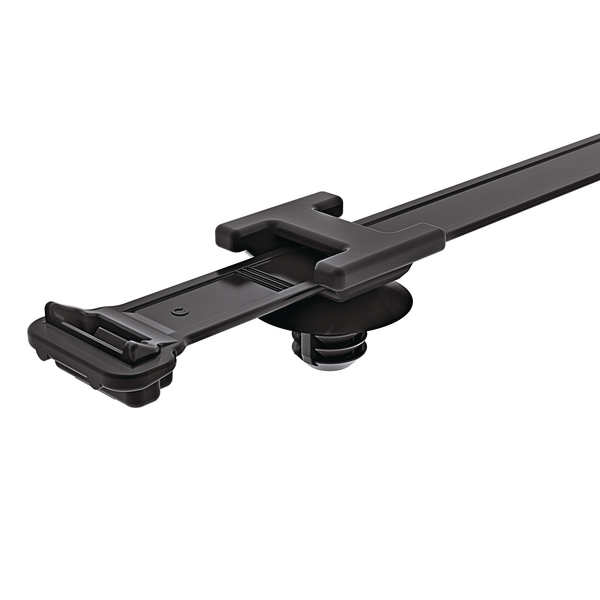

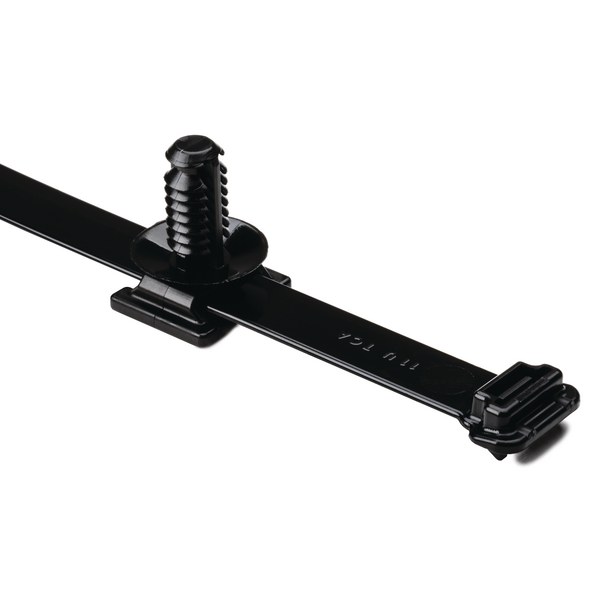

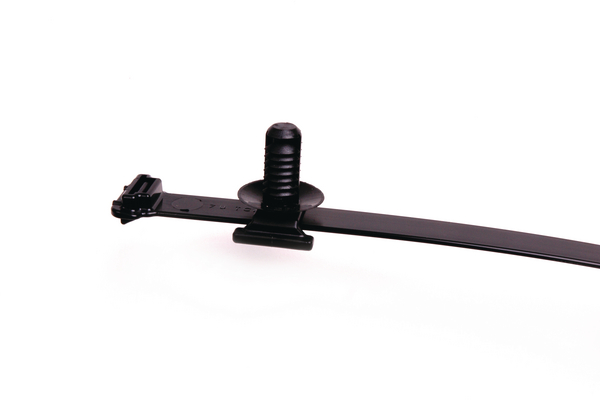

Fixing tie for hole (round), inside serrated, Ø9.5-105.0mm, black, 100pcs.
Art.-No. 156-00074 | WSRFT9B-PA66HIRHSUV-BK Details

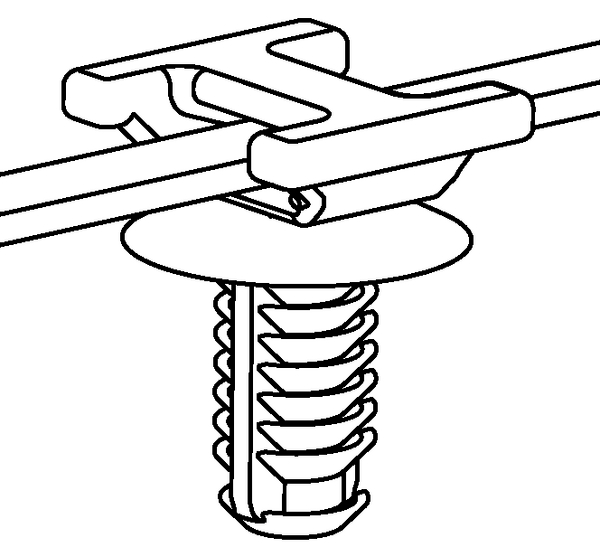

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more
Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK9P, MK9P w/ Upper air, MK21, EVO7SP, EVO7i, EVO9, EVO9HT
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION WSRFT9B-PA66HIRHSUV-BK
Product Family Fir tree parts FT9
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ 9.5-105.0mm
Bundle ∅ min. 9.5mm
Disc ∅ 21.6mm
for Hole ∅ (FH) 8.7 - 9.2 mm
for Panel Thickness min - max 1 - 15.8 mm
for Panel Thickness min - max 0 - 0.6 "
Height (H) 28.40mm
Height (H2) 18.40mm
Length (L) 383.5mm
Min.Tensile Strength 535N
Panel Thickness max. 1.0 - 15.8mm
Weight/Unit 0.009184kg
Width (W) 12.7mm
Width (W2) 13.0mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026419442
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.615m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.01637
Packaging 1 - Weight (kg) 0.9594kg
Packaging 1 - Width (m) 0.355m
Packaging 2 - Type carton

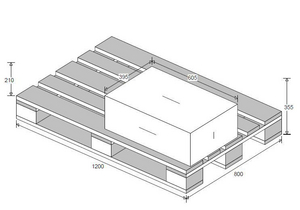

Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0502
Packaging 3 - Weight (kg) 5.657kg
Packaging 3 - Width (m) 0.395m

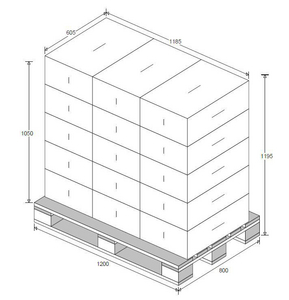

Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 105.855kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
