Cable clip for hole (round)/for stud, ⌀M6, Dmax=24.0mm

Art.-No. 151-03906

| DHVC24M6A-PA66HIRHSUV-BK

|

Double clip in PA46 with anti-rotation pin recommended for corrugated tubing.

Add to watchlist

Downloads

More products in this product group:

Fixing elements for tubes and harnesses

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Key product features	vibration absorbing, sealed, for multiple routing
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
No. of bundles	2
PART DESCRIPTION	DHVC24M6A-PA66HIRHSUV-BK
Package Content	200pcs.
Package Content packed in	pack
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	DHVC24M6A
UV-Stabilised	Yes

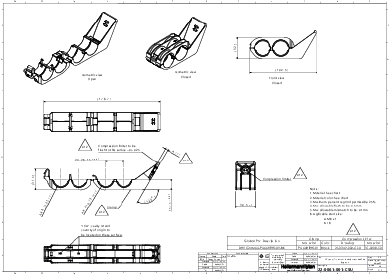

Product Dimensions

⌀ max. 1. loop	24.0mm
⌀ max. 2. loops	24.0mm
Bundle ⌀	24.0mm
Bundle ⌀ max.	24.0mm
Height (H)	31.5mm
Length (L)	102.5mm
Width (W)	30.5mm
for Hole ⌀ (FH)	M6

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026709116
Packaging 1 - Qty	200
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	200
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Weight (kg)	4.2kg
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Qty	6000
Packaging 4 - Type	pallet

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121705
