20/10/2025

Cable clip for hole (round)/for stud, ⌀M8, Dmin=16.5mm, Dmax=17.5mm
Art.-No. 151-04061 | HDC17X3BASE-PA66GF15/TPE-BK |

Copied
Double and triple high voltage clips.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION HDC17X3BASE-PA66GF15/TPE-BK
    Package Content 350pcs.
    Package Content packed in carton
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type HDC17X3BASE
    UV-Stabilised No
    ⌀ max. 1. loop 17.5mm
    ⌀ max. 2. loops 17.5mm
    Bundle ⌀ 16.5-17.5mm
    Bundle ⌀ max. 17.5mm
    Bundle ⌀ min. 16.5mm

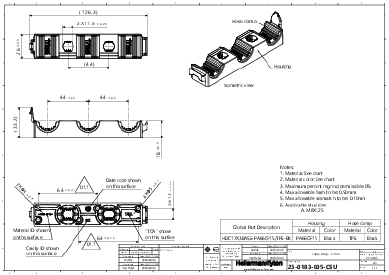

    Fixing Hole Centres (F) 1.73"
    Fixing Hole Centres (F) 44.0mm
    Height (H) 36.0mm
    Height (H2) 18.0mm
    Length (L) 126.3mm
    Length (L2) 44.0mm
    Width (W) 26.0mm
    for Hole ⌀ (FH) M8
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026732695
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
