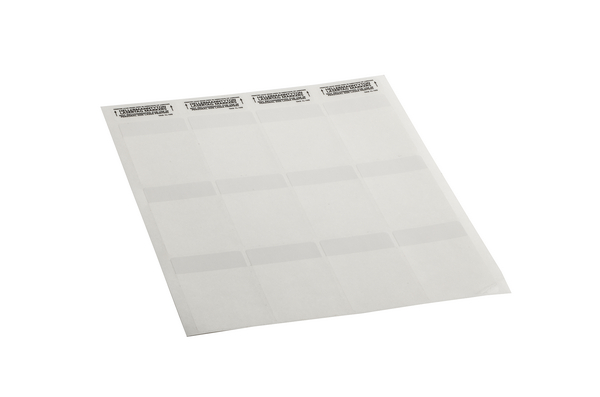

Cable label, self laminating, white, laser print, 48.2mm, H2=82.55mm, 1000pcs.
Art.-No. 594-01105 | TAG1L-105-WH Details

  • Crisp and clear text, barcodes and graphics
  • Used to identify wide range of electrical and electronic products
  • Clear protective box to ensures labels stay as good as new
  • Simple and efficient label design and printing with TagPrint Pro software
  • Self Laminate
Show more
Application This range of labels has been specially developed for use with laser printers. The material properties ensure print is instantly smudge resistant so can be handled immediately. Using laser printers allows users to print barcodes, graphics and condensed text. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 50 Pair Copper
Material Type 105, Polyester, white (105)
Pack Cont. 1000pcs.
Package Content packed in pack
Paper Format Letter
PART DESCRIPTION TAG1L-105-WH
Product Family Self Laminate Label
Product Group Labels for Laser Printers
Bundle Diameter max (metric) 8.00mm
Bundle ∅ 6.35-8.00mm
Bundle ∅ min. 6.35mm
H printable 19.06mm
Height (H2) 82.55mm
HR 2.0"
HR 50.8mm
Outside ∅ max (OD max.) 20.20mm
Outside ∅ max. 0.39"
Outside ∅ min. 0.79"
Outside ∅ min. (OD min.) 10.1mm
Print Method laser print
Thickness (T) 35.0µm
Thickness of Foil 35µm
VR 85.09mm
VR 3.35"
Width (W) 48.2mm
Width of LIner (WL) 8.5"
Width of Liner (WL) 215.00mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +149 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026174105
Labels per Column 3
Labels per Row 4
Labels per Sheet 12
Packaging 1 - Qty 1000
Packaging 1 - Weight (kg) 0.521kg
Packaging 2 - Qty 1
Packaging 3 - Qty 1000
Packaging 4 - Length (m) 1.20m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.80m
Sheets per Pack 84
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
