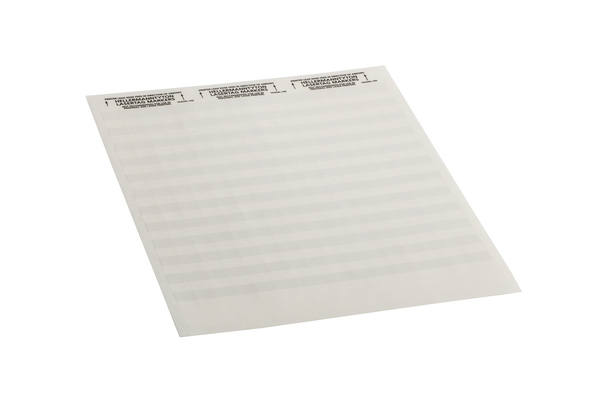

Cable label, self laminating, white, laser print, 12.7mm, H2=19.06mm, 5000pcs.
Art.-No. 594-26105 | TAG26L-105-WH Details

  • Crisp and clear text, barcodes and graphics

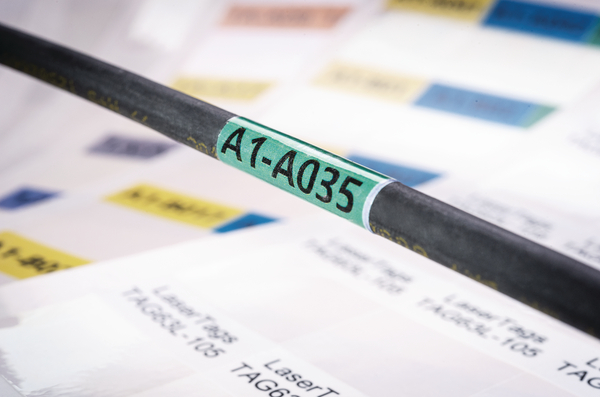

  • Used to identify wide range of electrical and electronic products
  • Clear protective box to ensures labels stay as good as new
  • Simple and efficient label design and printing with TagPrint Pro software
  • Self Laminate
Show more
Application This range of labels has been specially developed for use with laser printers. The material properties ensure print is instantly smudge resistant so can be handled immediately. Using laser printers allows users to print barcodes, graphics and condensed text. A range of sizes and materials are available to suit most cable marking and asset identification needs. For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.
Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 2 Pair Fiber
Material Type 105, Polyester, white (105)
Pack Cont. 5000pcs.
Package Content packed in pack
Paper Format Letter
PART DESCRIPTION TAG26L-105-WH
Product Family Self Laminate Label
Product Group Labels for Laser Printers
Bundle Diameter max (metric) 3.17mm
Bundle ∅ 2.79-3.17mm
Bundle ∅ min. 2.79mm
H printable 9.52mm
Height (H2) 19.06mm
HR 1.90"
HR 48.20mm
Outside ∅ max (OD max.) 3.00mm
Outside ∅ max. 0.118"
Outside ∅ min. 0.059"
Outside ∅ min. (OD min.) 1.5mm
Print Method laser print
Thickness (T) 35.0µm
VR 19.00mm
VR 0.75"
Width (W) 12.7mm
Width of LIner (WL) 8.5"
Width of Liner (WL) 215.00mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CE Certification No
CSA Certified No
Curing Temperature +10 °C
Halogen-free No
Operating Temperature -40 °C to +149 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin US
GTIN-13 / EAN 4031026174884

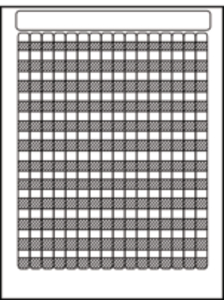

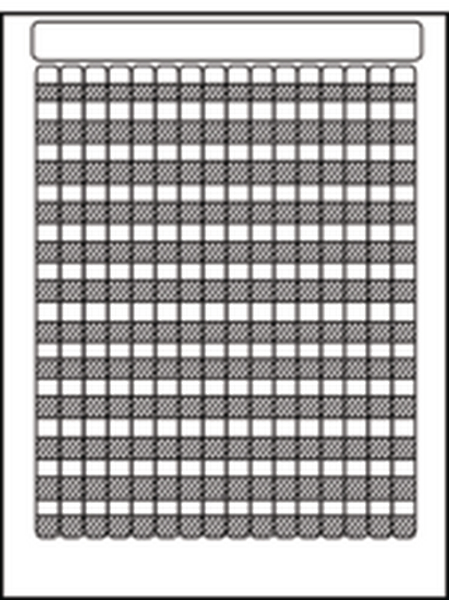

Labels per Column 16
Labels per Row 16
Labels per Sheet 256
Packaging 1 - Weight (kg) 0.521kg
Sheets per Pack 40
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121612
