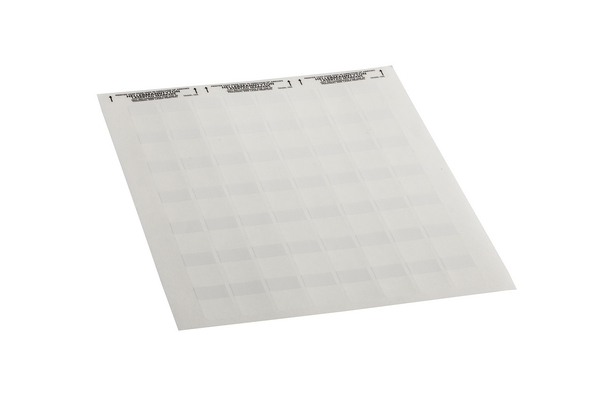

Labels for Laser Printers : TAG5L

Self Laminate Label, Article number: 594-05105

Features

  • Crisp and clear text, barcodes and graphics
  • Used to identify wide range of electrical and electronic products
  • Clear protective box to ensures labels stay as good as new
  • Simple and efficient label design and printing with TagPrint Pro software
  • Self Laminate

Certifications & Approvals

Application

This range of labels has been specially developed for use with laser printers. The material properties ensure print is instantly smudge resistant so can be handled immediately. Using laser printers allows users to print barcodes, graphics and condensed text.
A range of sizes and materials are available to suit most cable marking and asset identification needs.
For problem-free printing, we recommend our easy to use windows based TagPrint Pro software program, which comes pre-loaded with all our standard label templates so you can start producing labels immediately.

Colour White (WH)
Colour Marking Field White (WH)
For Wire Type 4 Pair UTP / RG6 & RG59 Coax
Pack Cont. 5000pcs.
Package Quantity per pack
Paper Format Letter
PART DESCRIPTION TAG5L-105-WH
Product Family Self Laminate Label
Product Group Labels for Laser Printers
Bundle ∅ max. 7.60mm
Bundle ∅ min. 3.80mm
Core diameter from / to 3.8 - 7.60mm
H printable 12.7mm
Height (H2) 36.50mm
HR 22.86mm
HR 0.90"
Outside ∅ max. 0.29"
Outside ∅ max (OD max.) 7.60mm
Outside ∅ min. 0.15"
Outside ∅ min. (OD min.) 3.8mm
Print Method Laser printer
Thickness (T) 35.0µm
VR 1.43"
VR 36.40mm
Width (W) 20.3mm
Width of Liner (WL) 215.00mm
Width of LIner (WL) 8.5"
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +150 °C
CSA Certified No
Curing Temperature +10 °C
Halogenfree No
Material Type 105, Polyester, white (105)
Operating Temperature - °C -40 °C to +149 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026174167

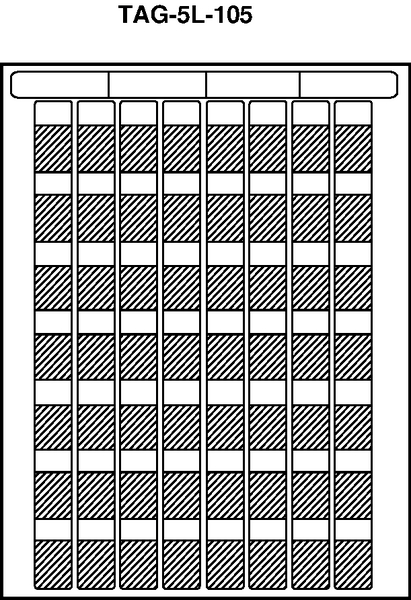

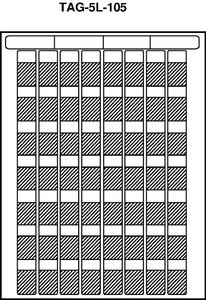

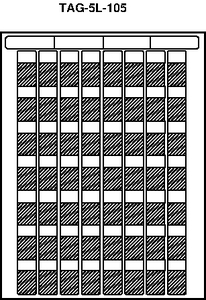

Labels per Column 7
Labels per Row 8
Labels per Sheet 56
Packaging 1 - Qty 5000
Packaging 1 - Weight (kg) 0.521kg
Packaging 3 - Qty 5000
Packaging 4 - Length (m) 1.20m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.80m
Sheets per Pack 90
Weight 1.14lbs
Weight 0.521kg
ETIM 6.0 EC001530
ETIM 7.0 Key EC001530
UNSPSC Key 55121612
